category:
Farm Duty
manufacturer:
Weg
mpn:
.7518AS1BPF56-S
subcategory:
Poultry Fan
weight:
28.7
Product Description

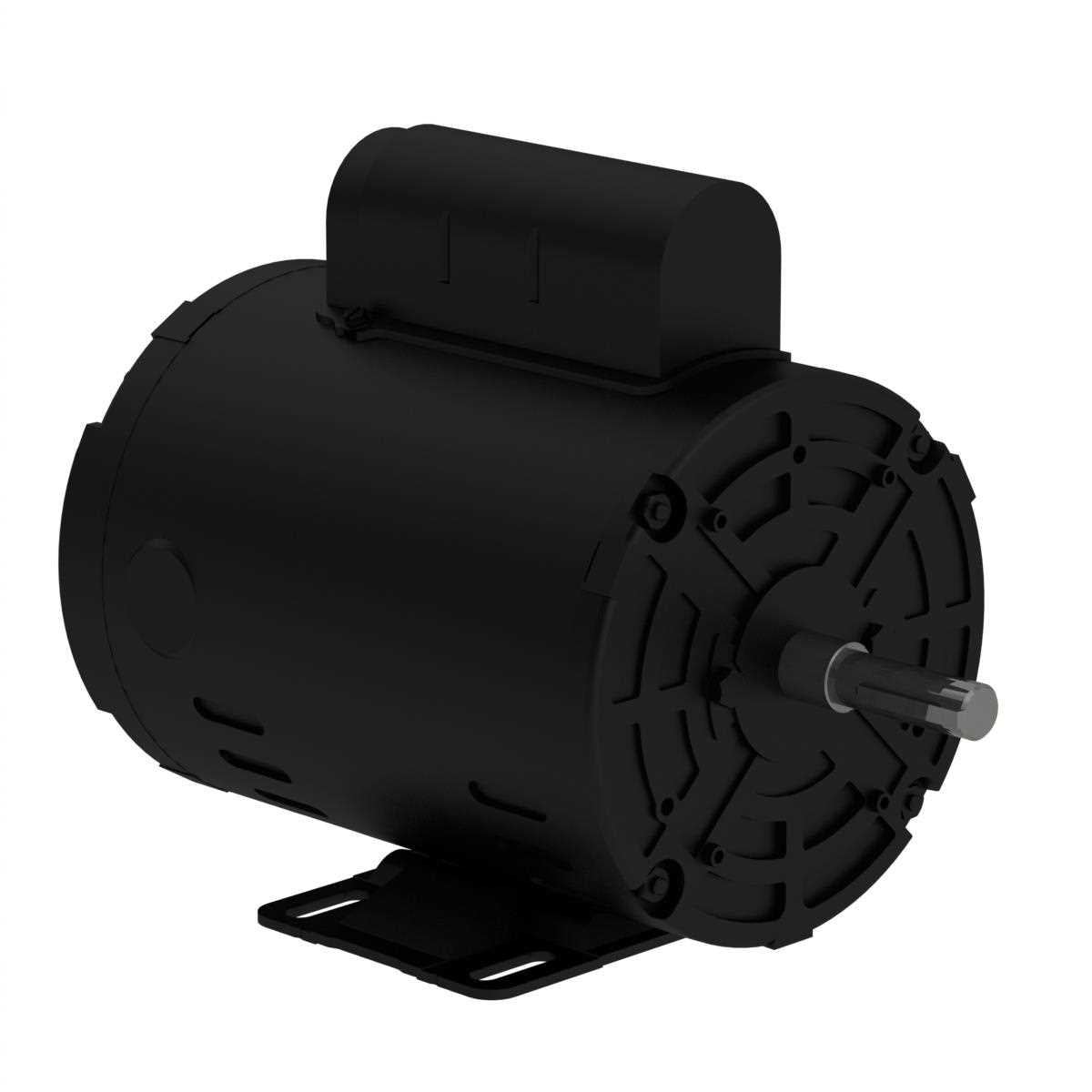

Weg - .7518AS1BPF56-S
Catalog Number:.7518AS1BPF56-S
StandardNEMA MG-1
Frequency60 Hz
Voltage115/208-230 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 rpm
Output rating0.75 HP
MountingF-1
FlangeWithout
Terminal box¹Without Terminal Box
EnclosureIC410 - TEAO
Frame56
Output0.75 HP (0.550 kW)
Rated speed1745 RPM
Slip0.0306
Rated voltage115/208-230 V
Rated current10.6/5.86-5.30 A
L. R. Amperes67.8/37.5-33.9 A
LRC6.4x(Code M)
No load current8.00/3.45-4.00 A
Rated torque2.26 ft.lb
Locked rotor torque3
Breakdown torque2.7
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)0.0783 sq.ft.lb
DesignN
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Automatic
Bolt MaterialCarbon Steel
Resilient BaseWithout
