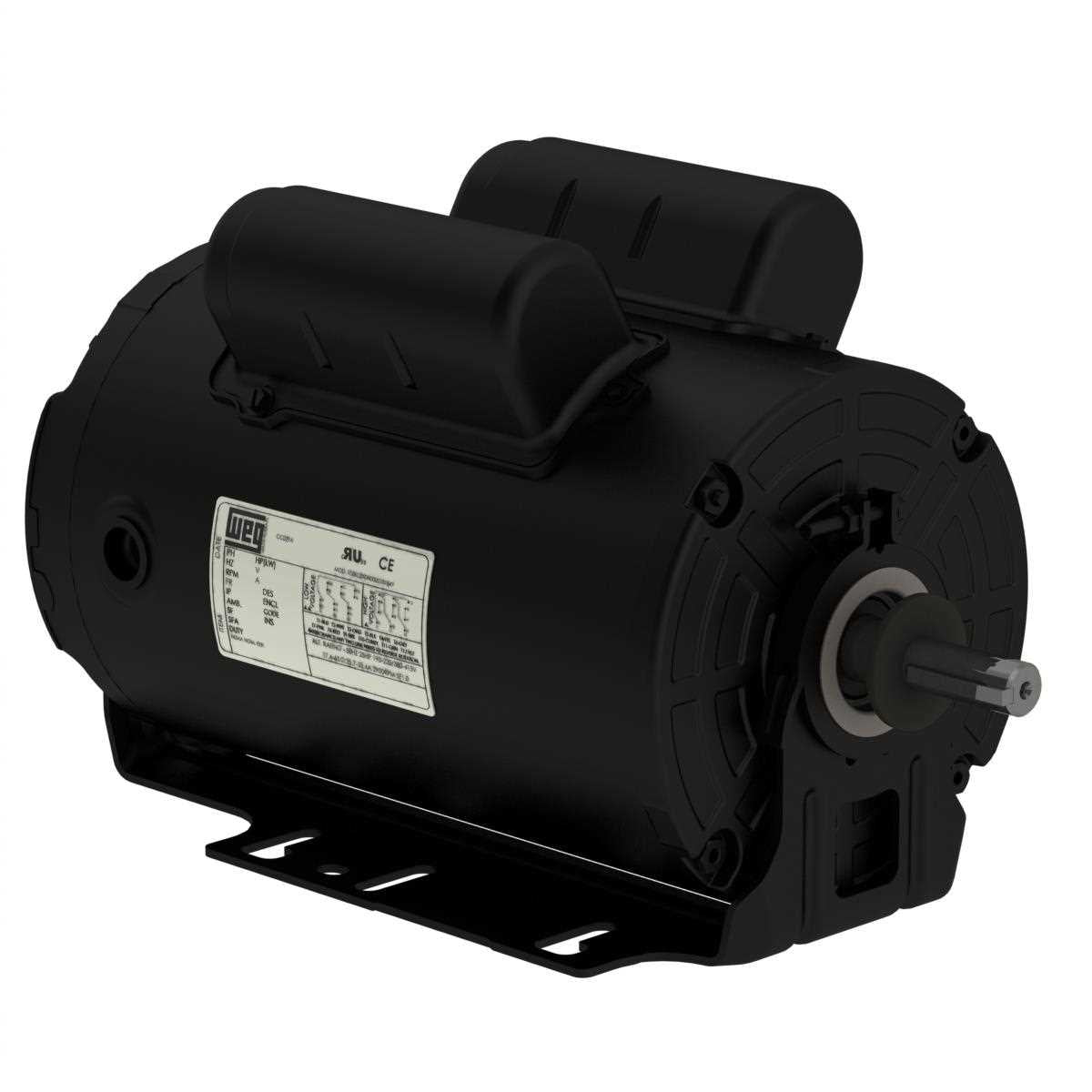

Weg Motors 15443640 Rolled Steel 1.5 HP 4P 56H 1Ph 115/208-230 V 60 Hz IC410 - TEAO - Foot-mounted- 00158AS1BRBPF56-S

Weg Motors 15443640 Rolled Steel 1.5 HP 4P 56H 1Ph 115/208-230 V 60 Hz IC410 - TEAO - Foot-mounted- 00158AS1BRBPF56-S

Dropship

SKU SKU:kpi004-00158AS1BRBPF56-S

Regular price $367.29 USD
Regular price Sale price $367.29 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Farm Duty
manufacturer: Weg
mpn: 00158AS1BRBPF56-S
subcategory: Poultry Fan
weight: 43
Catalog Number:00158AS1BRBPF56-S
StandardNEMA MG-1
Frequency60 Hz
Voltage115/208-230 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 rpm
Output rating1.5 HP
MountingF-1
FlangeWithout
Terminal box¹Without Terminal Box
EnclosureIC410 - TEAO
Frame56H
Output1.5 HP (1.1 kW)
Rated speed1745 RPM
Slip0.0306
Rated voltage115/208-230 V
Rated current15.0/8.27-7.48 A
L. R. Amperes120/66.2-59.8 A
LRC8.0x(Code L)
No load current7.80/3.36-3.90 A
Rated torque4.51 ft.lb
Locked rotor torque2.5
Breakdown torque2.7
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)0.1424 sq.ft.lb
DesignL
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Automatic
Bolt MaterialCarbon Steel
Resilient BaseWith
