category:
Farm Duty
manufacturer:
Weg
mpn:
.7518AS1BRBPF56-S
subcategory:
Poultry Fan
weight:
28.7
Product Description

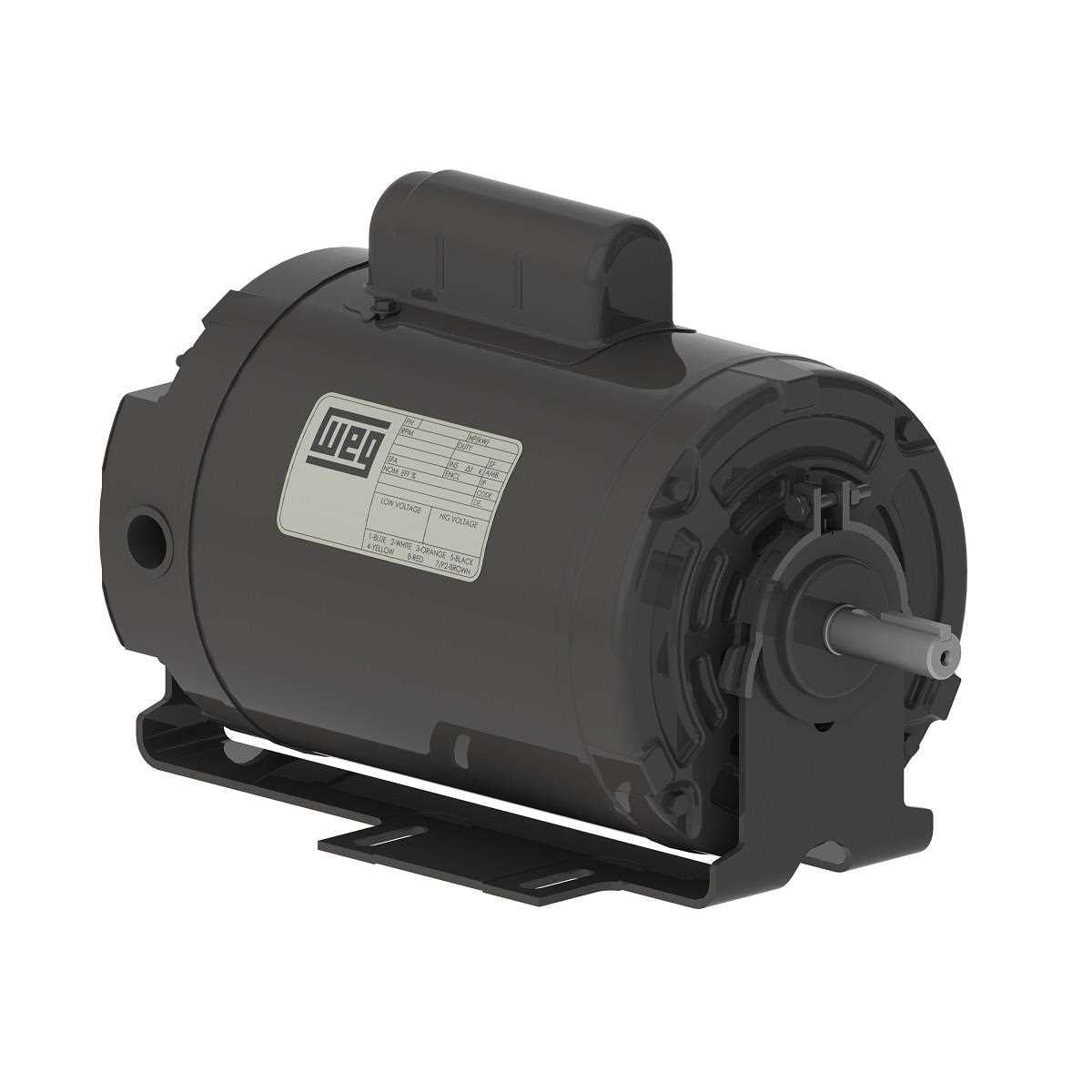

Weg - .7518AS1BRBPF56-S
Catalog Number:.7518AS1BRBPF56-S
StandardNEMA MG-1
Frequency60 Hz
Voltage115/208-230 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 rpm
Output rating0.75 HP
MountingF-1
FlangeWithout
Terminal box¹Without Terminal Box
EnclosureIC410 - TEAO
Frame56
Output0.75 HP (0.550 kW)
Rated speed1750 RPM
Slip0.0278
Rated voltage115/208-230 V
Rated current11.3/5.40-5.63 A
L. R. Amperes70.1/33.5-34.9 A
LRC6.2x(Code M)
No load current9.40/3.80-4.70 A
Rated torque2.25 ft.lb
Locked rotor torque3.3
Breakdown torque3
Locked rotor time0s (cold) 0s (hot)
Moment of inertia (J)0.0783 sq.ft.lb
DesignN
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Automatic
Bolt MaterialCarbon Steel
Resilient BaseWith
