category:
Washdown Duty
country_of_origin:
TW
manufacturer:
Weg
mpn:
00518ET3HHW184TC-S
subcategory:
HydroWash - White Epoxy
weight:
81.3
Product Description

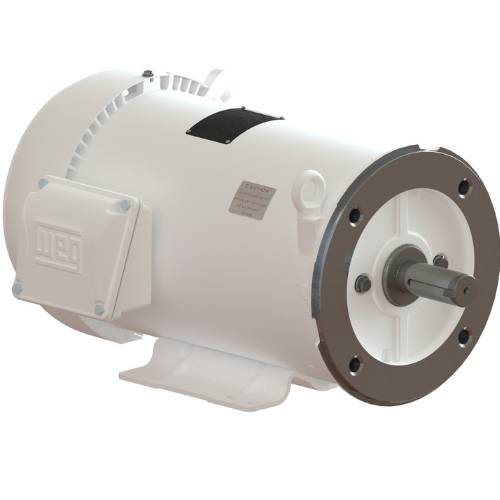

Weg - 00518ET3HHW184TC-S
Catalog Number:00518ET3HHW184TC-S
StandardNEMA MG-1
Frequency60 Hz
Voltage575 V
Number of poles4
Degree of ProtectionIP56
Synchronous speed1800 RPM
Output rating5 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame182/4TC
Output5 HP (3.7 kW)
Rated speed1750 RPM
Slip0.0278
Rated voltage575 V
Rated current5.19 A
L. R. Amperes36.3 A
LRC7.0x(Code J)
No load current2.75 A
Rated torque15.0 ft.lb
Locked rotor torque2.2
Breakdown torque3
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)0.3080 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²56.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft MaterialAISI 304 Stainless Steel
Painting04501 205E
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingComplete (200h)
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Bolt MaterialStainless Steel
Joints SealPermatex
Resilient BaseWithout
