category:
Washdown Duty
manufacturer:
Weg
mpn:
02018ET3HHW256TC-S
subcategory:
HydroWash - White Epoxy
weight:
2.2
Product Description

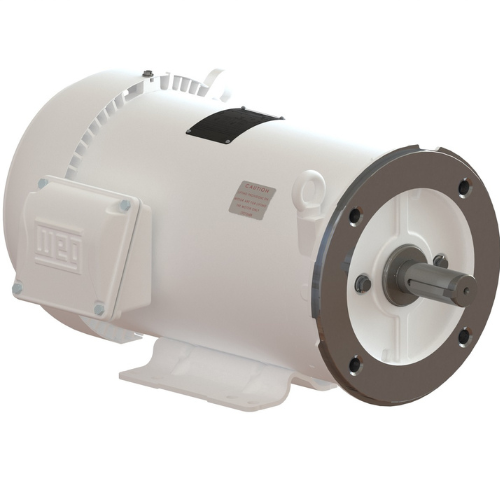

Weg - 02018ET3HHW256TC-S
Catalog Number:02018ET3HHW256TC-S
StandardNEMA MG-1
Frequency60 Hz
Voltage575 V
Number of poles4
Degree of ProtectionIP56
Synchronous speed1800 RPM
Output rating20 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame254/6TC
Output20 HP (15 kW)
Rated speed1765 RPM
Slip0.0194
Rated voltage575 V
Rated current19.8 A
L. R. Amperes132 A
LRC6.7x(Code H)
No load current8.89 A
Rated torque59.5 ft.lb
Locked rotor torque2.7
Breakdown torque3
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)2.64 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²68.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1 1/4"
Terminal BlockWithout
Shaft MaterialAISI 304 Stainless Steel
Painting04501 205E
Grounding LugsSuperior
Fan Cover materialSteel
Tropicalized PaintingComplete (200h)
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Bolt MaterialStainless Steel
Joints SealPermatex
Resilient BaseWithout
