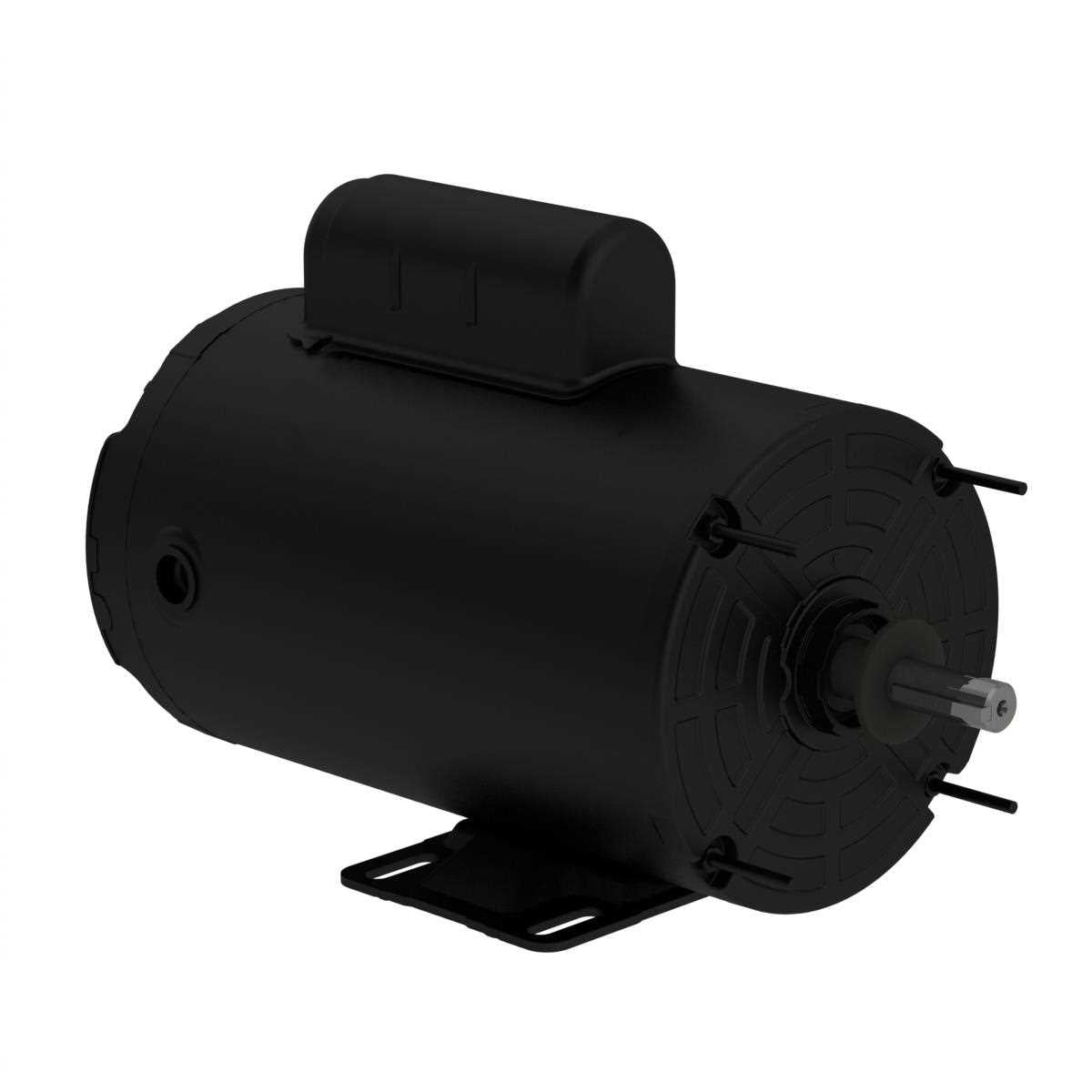

Weg Motors 15647345 Rolled Steel 0.33 HP 6P 48Z 1Ph 115/208-230 V 60 Hz IC410 - TEAO - Foot-mounted- .3312AS1BPFPC48Z-S

Weg Motors 15647345 Rolled Steel 0.33 HP 6P 48Z 1Ph 115/208-230 V 60 Hz IC410 - TEAO - Foot-mounted- .3312AS1BPFPC48Z-S

Dropship

Get it by Sat, Dec 14 - Thu, Dec 19

SKU SKU:kpi004-.3312AS1BPFPC48Z-S

Regular price $247.94 USD
Regular price Sale price $247.94 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Farm Duty
manufacturer: Weg
mpn: .3312AS1BPFPC48Z-S
subcategory: Poultry Fan
weight: 27.6

Product Description

Weg - .3312AS1BPFPC48Z-S

Catalog Number:.3312AS1BPFPC48Z-S
StandardNEMA MG-1
Frequency60 Hz
Voltage115/208-230 V
Number of poles6
Degree of ProtectionIP55
Synchronous speed1200 rpm
Output rating0.33 HP
MountingF-1
FlangeWithout
Terminal box¹Without Terminal Box
EnclosureIC410 - TEAO
Frame48Z
Output0.33 HP (0.25 kW)
Rated speed1165 RPM
Slip0.0292
Rated voltage115/208-230 V
Rated current3.75/1.86-1.88 A
L. R. Amperes18.4/9.11-9.21 A
LRC4.9x(Code H)
No load current2.20/0.900-1.10 A
Rated torque1.49 ft.lb
Locked rotor torque0.4
Breakdown torque2.7
Locked rotor time0s (cold) 0s (hot)
Moment of inertia (J)0.0617 sq.ft.lb
DesignN
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Balancing MethodNot Balanced
Drip CoverWithout
Overload protector (phenolic)Automatic
Bolt MaterialCarbon Steel
Resilient BaseWithout
