category:
Farm Duty
manufacturer:
Weg
mpn:
.3318AS1BPFPC48Z-S
subcategory:
Poultry Fan
weight:
18.3
Product Description

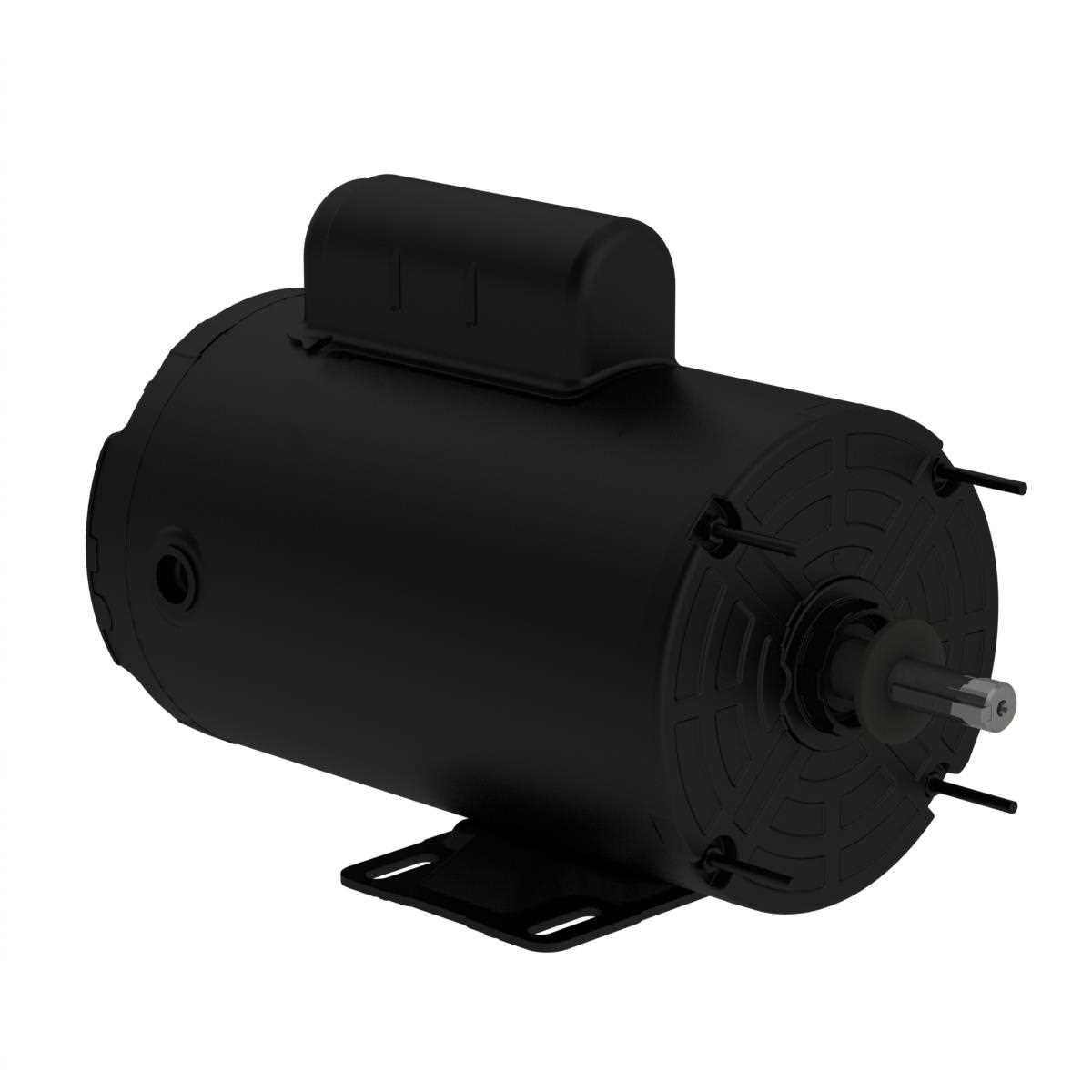

Weg - .3318AS1BPFPC48Z-S
Catalog Number:.3318AS1BPFPC48Z-S
StandardNEMA MG-1
Frequency60 Hz
Voltage115/208-230 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 rpm
Output rating0.33 HP
MountingF-1
FlangeWithout
Terminal box¹Without Terminal Box
EnclosureIC410 - TEAO
Frame48Z
Output0.33 HP (0.25 kW)
Rated speed1735 RPM
Slip0.0361
Rated voltage115/208-230 V
Rated current3.65/1.81-1.83 A
L. R. Amperes17.5/8.69-8.78 A
LRC4.8x(Code G)
No load current1.50/0.750-0.800 A
Rated torque0.999 ft.lb
Locked rotor torque0.55
Breakdown torque2.6
Locked rotor time0s (cold) 0s (hot)
Moment of inertia (J)0.0403 sq.ft.lb
DesignN
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Balancing MethodNot Balanced
Drip CoverWithout
Overload protector (phenolic)Automatic
Bolt MaterialCarbon Steel
Resilient BaseWithout
