category:
Farm Duty
manufacturer:
Weg
mpn:
00218AS1BPF145T-S
subcategory:
Poultry Fan
weight:
55.1
Product Description

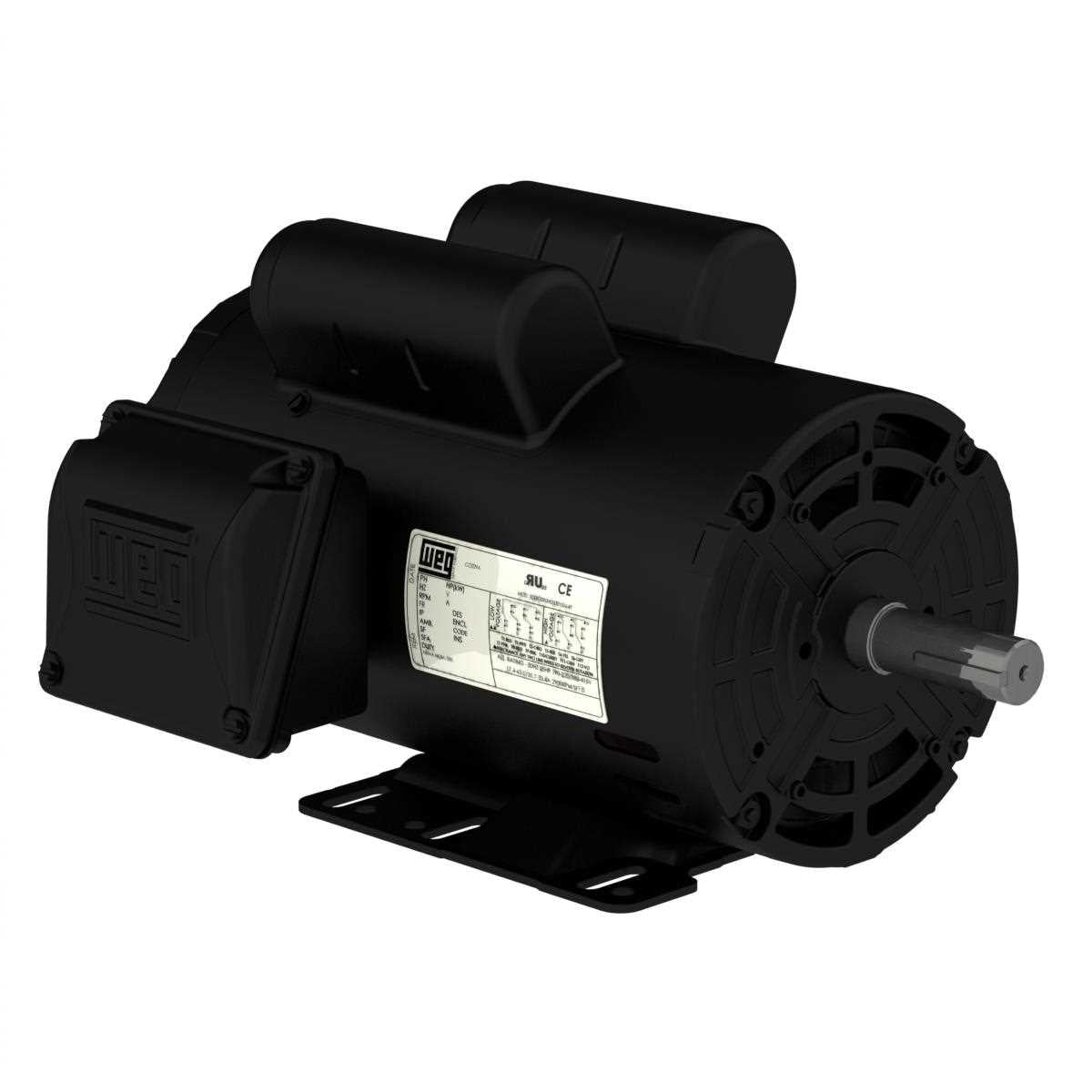

Weg - 00218AS1BPF145T-S
Catalog Number:00218AS1BPF145T-S
StandardNEMA MG-1
Frequency60 Hz
Voltage115/208-230 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 rpm
Output rating2 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC410 - TEAO
Frame143/5T
Output2 HP (1.5 kW)
Rated speed1745 RPM
Slip0.0306
Rated voltage115/208-230 V
Rated current20.0/11.1-10.0 A
L. R. Amperes160/88.8-80.0 A
LRC8.0x(Code L)
No load current12.2/5.26-6.10 A
Rated torque6.02 ft.lb
Locked rotor torque2.6
Breakdown torque2.6
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.1614 sq.ft.lb
DesignL
Insulation ClassF
Service factor1.15 (1.00 @ 208V)
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²54.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.118"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Automatic
Bolt MaterialCarbon Steel
Resilient BaseWithout
