category:
Variable Speed
manufacturer:
Weg
mpn:
.5018NT3FVD56C-S
subcategory:
Vector Duty Line - Tenv
weight:
27.8
Product Description

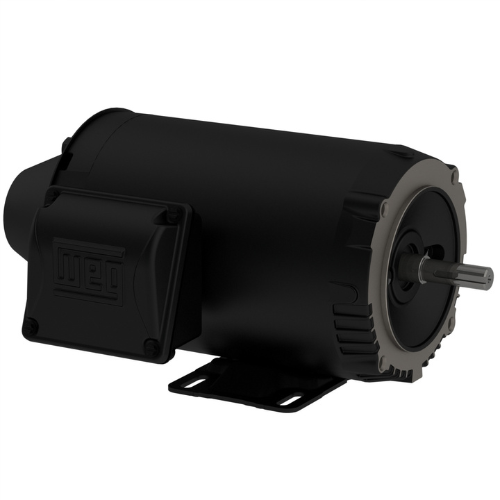

Weg - .5018NT3FVD56C-S
Catalog Number:.5018NT3FVD56C-S
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 RPM
Output rating0.5 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC410 - TENV
Frame56CZ
Output0.5 HP (0.37 kW)
Rated speed1775 RPM
Slip0.0139
Rated voltage230/460 V
Rated current1.97/0.986 A
L. R. Amperes17.1/8.58 A
LRC8.7x(Code P)
No load current1.52/0.760 A
Rated torque1.48 ft.lb
Locked rotor torque3.3
Breakdown torque5
Locked rotor time34s (cold) 19s (hot)
Moment of inertia (J)0.0783 sq.ft.lb
Insulation ClassH
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole0.881"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Winding thermal protectionThermostat - 2 wires 1 per phase 155°C
Bolt MaterialCarbon Steel
Resilient BaseWithout
