category:
Variable Speed
manufacturer:
Weg
mpn:
.7518NT3FVD56C-S
subcategory:
Vector Duty Line - Tenv
weight:
30.9
Product Description

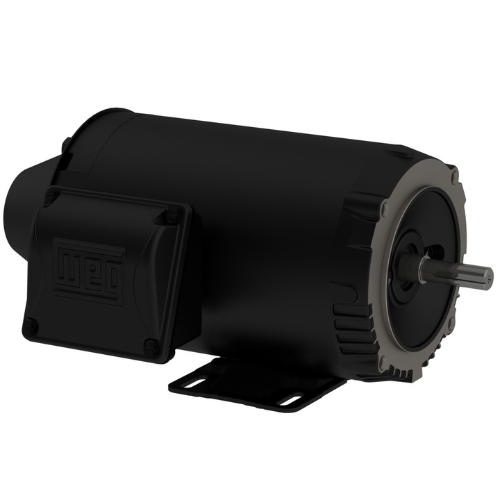

Weg - .7518NT3FVD56C-S
Catalog Number:.7518NT3FVD56C-S
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 RPM
Output rating0.75 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC410 - TENV
Frame56CZ
Output0.75 HP (0.550 kW)
Rated speed1770 RPM
Slip0.0167
Rated voltage230/460 V
Rated current2.61/1.30 A
L. R. Amperes23.5/11.7 A
LRC9.0x(Code N)
No load current1.82/0.910 A
Rated torque2.23 ft.lb
Locked rotor torque3.5
Breakdown torque4.5
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)0.0906 sq.ft.lb
Insulation ClassH
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole0.881"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Winding thermal protectionThermostat - 2 wires 1 per phase 155°C
Bolt MaterialCarbon Steel
Resilient BaseWithout
