category:
Variable Speed
manufacturer:
Weg
mpn:
00118NT3FVD56C-S
subcategory:
Vector Duty Line - Tenv
weight:
37.9
Product Description

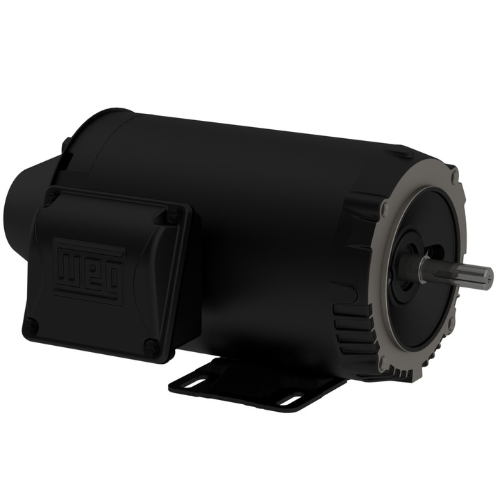

Weg - 00118NT3FVD56C-S
Catalog Number:00118NT3FVD56C-S
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 RPM
Output rating1 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC410 - TENV
Frame56CZ
Output1 HP (0.75 kW)
Rated speed1765 RPM
Slip0.0194
Rated voltage230/460 V
Rated current2.94/1.47 A
L. R. Amperes25.3/12.6 A
LRC8.6x(Code M)
No load current1.78/0.890 A
Rated torque2.98 ft.lb
Locked rotor torque2.8
Breakdown torque3
Locked rotor time34s (cold) 19s (hot)
Moment of inertia (J)0.1234 sq.ft.lb
DesignB
Insulation ClassH
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole0.881"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Winding thermal protectionThermostat - 2 wires 1 per phase 155°C
Bolt MaterialCarbon Steel
Pump SealGasket
Resilient BaseWithout
