category:
General Purpose
manufacturer:
Weg
mpn:
12536OT3G404TS-RFVFD
subcategory:
Odp Cast Iron
weight:
1010
Product Description

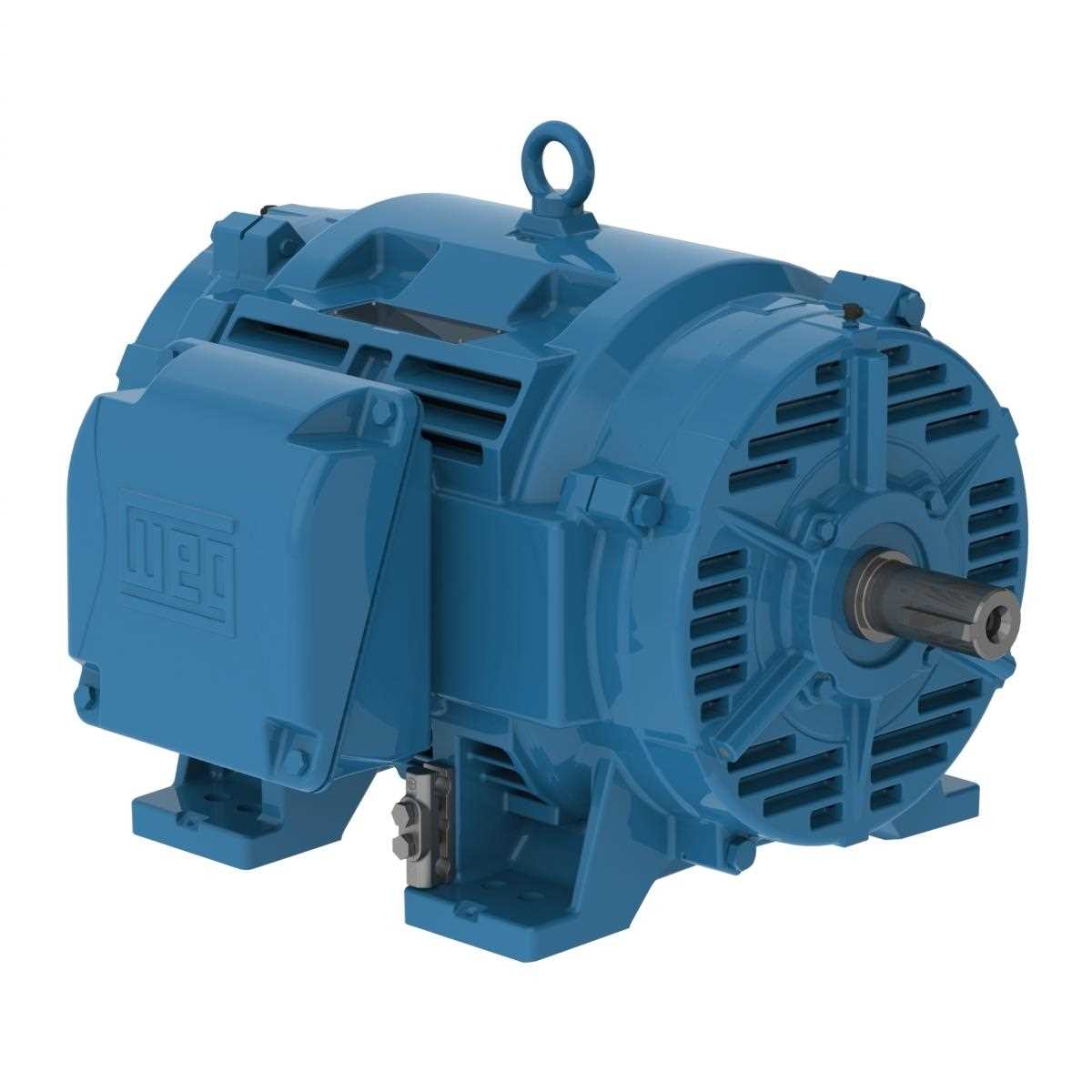

Weg - 12536OT3G404TS-RFVFD W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.
Additional Information
Catalog Number12536OT3G404TS-RFVFD
StandardNEMA MG-1
Frequency50 Hz
Voltage460//380 V
Number of poles2
Degree of ProtectionIP23
Synchronous speed3600 rpm
Output rating125 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC01 - ODP
Frame404/5TS
Output125 HP
Rated speed2962 RPM
Slip0.0127
Rated voltage380 V
Rated current163 A
L. R. Amperes1271 A
LRC7.8x(Code H)
No load current42.0 A
Rated torque222 ft.lb
Locked rotor torque3.5
Breakdown torque3.5
Locked rotor time16s (cold) 9s (hot)
Moment of inertia (J)12.0 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.15
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodVFD
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²84.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Main terminal box holeNPT 3"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Shaft Locking DeviceWithout
Regreasing SystemAt Drive end and Non-drive end
Bolt MaterialCarbon Steel
Space Heater Voltage110-127/200-240 V
