manufacturer:
Weg
mpn:
07536OT3E364TS-RFW40
weight:
736

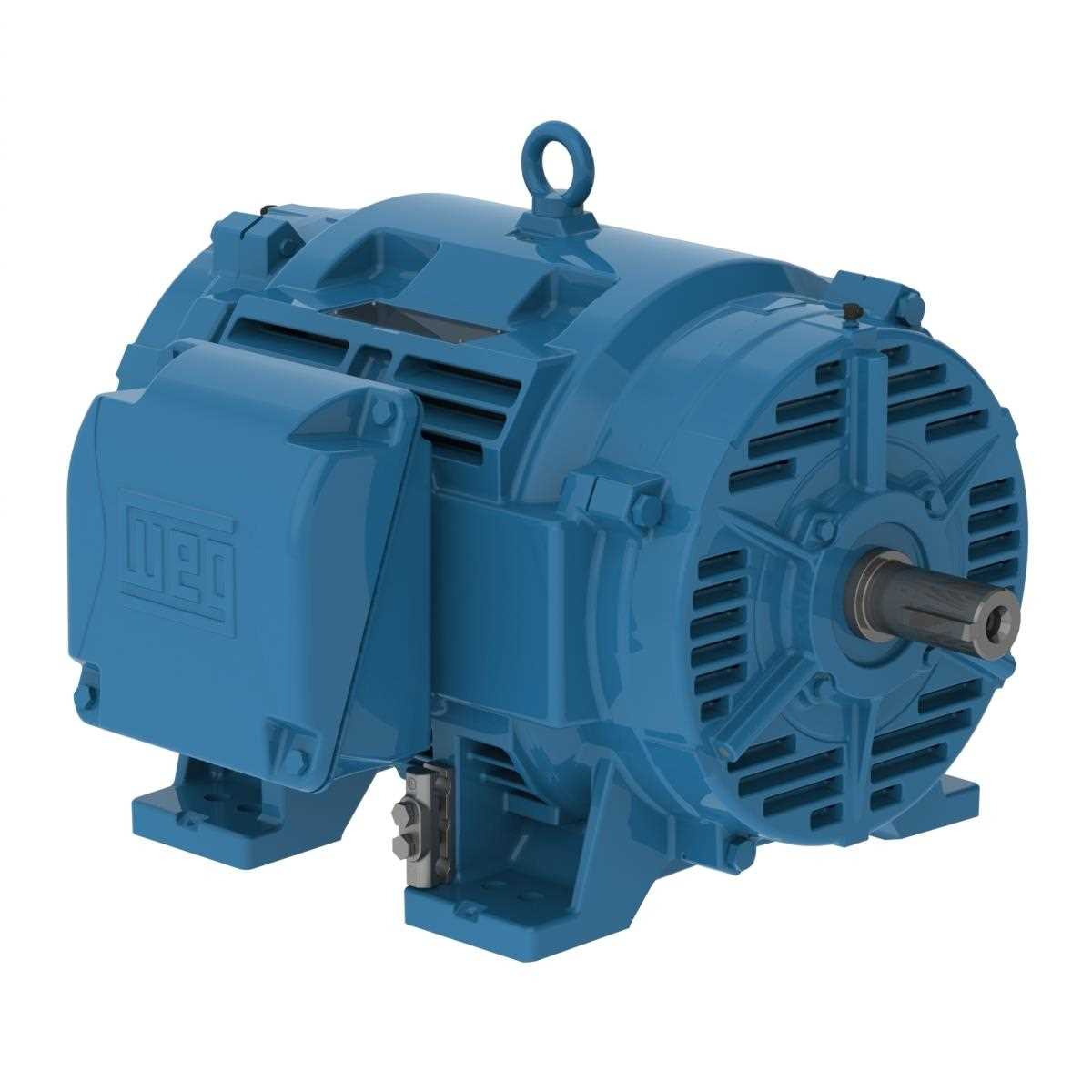

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.
Additional Information
Catalog Number07536OT3E364TS-RFW40
StandardNEMA MG-1
Frequency60 Hz
Voltage208-230/460//380 V
Number of poles2
Degree of ProtectionIP23
Synchronous speed3600 rpm
Output rating75 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC01 - ODP
Frame364/5TS
Output75 HP (55 kW)
Rated speed3555 RPM
Slip0.0125
Rated voltage208-230/460 V
Rated current188-170/84.8 A
L. R. Amperes1241-1122/560 A
LRC6.6x(Code G)
No load current37.1-43.0/21.5 A
Rated torque111 ft.lb
Locked rotor torque2
Breakdown torque2.5
Locked rotor time34s (cold) 19s (hot)
Moment of inertia (J)6.40 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²84.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Main terminal box holeNPT 3"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Shaft Locking DeviceWithout
Regreasing SystemAt Drive end and Non-drive end
Bolt MaterialCarbon Steel
Space Heater Voltage110-127/200-240 V
