category:
Pump Motors
manufacturer:
Weg
mpn:
00136ET3H143T-W22G
subcategory:
Aegis Inside
weight:
36.4

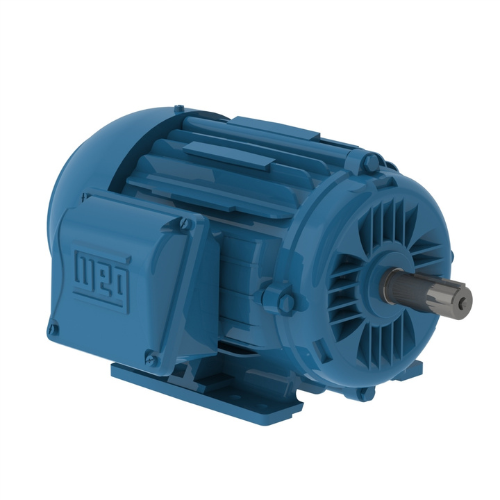

Product Description
Available with Internal Shaft Grounding Ring€“ AEGIS
Additional Information
Catalog Number0136ET3H143T-W22G
StandardNEMA MG-1
Frequency60 Hz
Voltage575 V
Number of poles2
Degree of Protection3
Synchronous speed3600 RPM
Output rating1 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame143/5T
Output1 HP (0.75 kW)
Rated speed3500 RPM
Slip0.0278
Rated voltage575 V
Rated current1.18 A
L. R. Amperes9.64 A
LRC8.2x(Code L)
No load current0.616 A
Rated torque1.50 ft.lb
Locked rotor torque2.2
Breakdown torque3.1
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)0.0332 sq.ft.lb
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²68.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing MethodIP55
Drip Cover1/2 Key
Connection Cables QuantityWithout overload protector
Shaft Locking DeviceWithout
Resilient BaseWithout
