category:
Pump Motors
manufacturer:
Weg
mpn:
00152ET3E182T-W22G
subcategory:
Aegis Inside
weight:
70.3

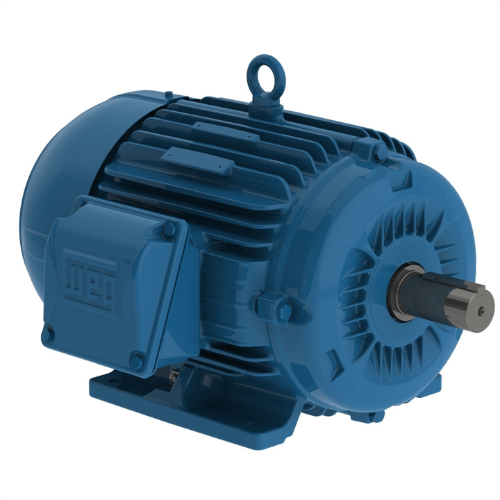

Product Description
Available with Internal Shaft Grounding Ring€“ AEGIS
Additional Information
Catalog Number0152ET3E182T-W22G
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460//380 V
Number of poles6
Degree of Protection9
Synchronous speed1200 RPM
Output rating1.5 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame182/4T
Output1.5 HP (1.1 kW)
Rated speed1170 RPM
Slip0.025
Rated voltage230/460 V
Rated current5.08/2.54 A
L. R. Amperes39.6/19.8 A
LRC7.8x(Code M)
No load current3.25/1.63 A
Rated torque6.73 ft.lb
Locked rotor torque3.2
Breakdown torque4
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)0.4879 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²52.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing MethodIP55
Drip Cover1/2 Key
Connection Cables QuantityWithout overload protector
Shaft Locking DeviceWithout
Resilient BaseWithout
