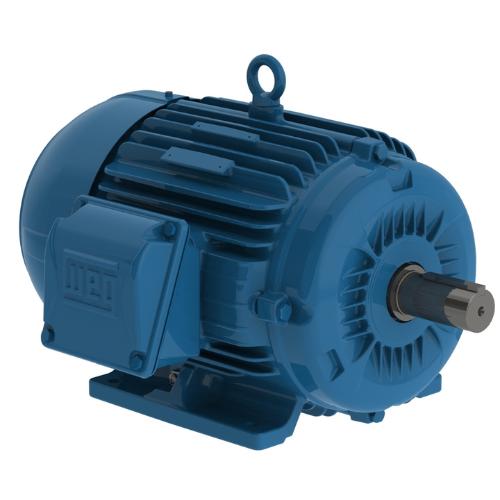

Product details
category: Pump Motors
manufacturer: Weg
mpn: 00212ET3H184T-W22G
subcategory: Aegis Inside
weight: 87.5
Available with Internal Shaft Grounding Ring€“ AEGIS
Additional Information
Catalog Number0212ET3H184T-W22G
StandardNEMA MG-1
Frequency60 Hz
Voltage575 V
Number of poles6
Degree of Protection6
Synchronous speed1200 RPM
Output rating2 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame182/4T
Output2 HP (1.5 kW)
Rated speed1170 RPM
Slip0.025
Rated voltage575 V
Rated current2.58 A
L. R. Amperes19.3 A
LRC7.5x(Code L)
No load current1.52 A
Rated torque8.98 ft.lb
Locked rotor torque3
Breakdown torque3.5
Locked rotor time55s (cold) 31s (hot)
Moment of inertia (J)0.6210 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²52.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing MethodIP55
Drip Cover1/2 Key
Connection Cables QuantityWithout overload protector
Shaft Locking DeviceWithout
Resilient BaseWithout
