Product details
category: Severe Duty
manufacturer: Weg
mpn: 01018ST3QAP215T-W22
subcategory: Ieee 841
weight: 188

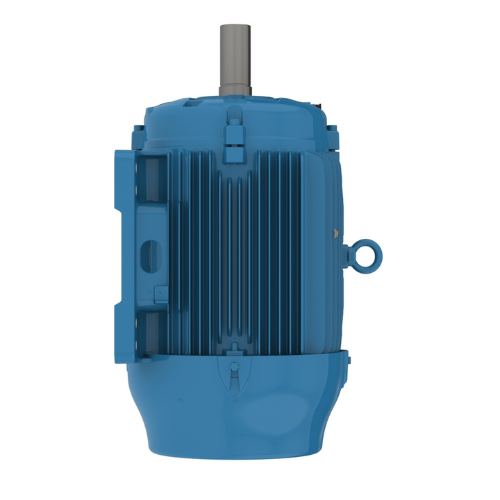

The WEG W22 API661 product is the latest generation of Severe Duty Cast Iron frame industrial motors designed to meet the demands of reliability, efficiency, and total cost of ownership todays€™ customers demand.
Additional Information
Catalog Number1018ST3QAP215T-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage460 V
Number of poles4
Degree of ProtectionIP56
Synchronous speed1800 RPM
Output rating10 HP
MountingW-8
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame213/5TZ
Output10 HP (7.5 kW)
Rated speed1765 RPM
Slip0.0194
Rated voltage460 V
Rated current12.4 A
L. R. Amperes79.4 A
LRC6.4x(Code H)
No load current5.65 A
Rated torque29.8 ft.lb
Locked rotor torque2
Breakdown torque2.95
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)1.51 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²58.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainType T, Threaded
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 202E (ISO 12944 - C4)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingAccording to IEEE-841 (96h)
Fan materialConductive Plastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity3
Shaft Locking DeviceWith
Regreasing SystemStainless Steel, at Drive end and Non-drive end
Bolt MaterialCarbon Steel
Joints SealMolykote
Foot flatness(0.005 pol) 0.127 mm
