manufacturer:
Western Enterprises
mpn:
REB-9-3
weight:
2.27

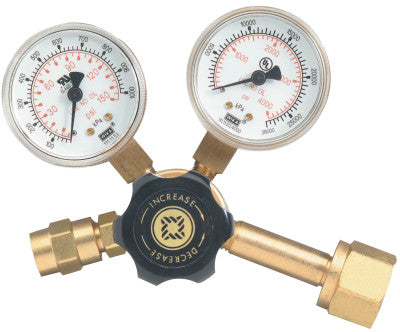

Product Description
| Lead Time | 1-2 Weeks |
|---|---|
| Manufacturer Part Number | REB-9-3 |
| GTIN | 698944042998 |
| Family | Western Enterprises REB Series Light Duty Single Stage Regulators |
| Manufacturer | Western Enterprises |
| Manufacturer URL | http://www.westernenterprises.com |
| Hazmat | N |
| Testing and Approvals | UL Listed |
| Country of Origin | US |
| Features | Neoprene diaphragm is sensitive yet durable to maintain consistent delivery pressure Dual inlet filtering system extends regulator life Dual scale gauges are easy to read KEL-F seat assembly For applications requiring a portable, lightweight, compact regulator such as in plumbing, and light-duty cutting and welding |
| Body Material | Machined Brass |
| Diaphragm Material | Neoprene |
| Flow Cap. [Max] | 1,000 SCFH |
| Gas Type | Oxygen |
| Gauge Size | 2 in |
| Height [Nom] | 4 1/4 in |
| Inlet Connection | CGA 540 |
| Inlet Pressure [Max] | 3,000 psi |
| Length [Nom] | 6 in |
| Outlet Connection | 9/16 in - 18 RH(M) |
| Outlet Pressure [Max] | 100 psi |
| Outlet Pressure [Min] | 0 psi |
| Width [Nom] | 3 3/4 in |
| Wt. | 29 oz |
