category:
Thermostatic Expansion Valves
manufacturer:
White Rodgers
mpn:
061866
subcategory:
TRAE Series Valves
Product Description

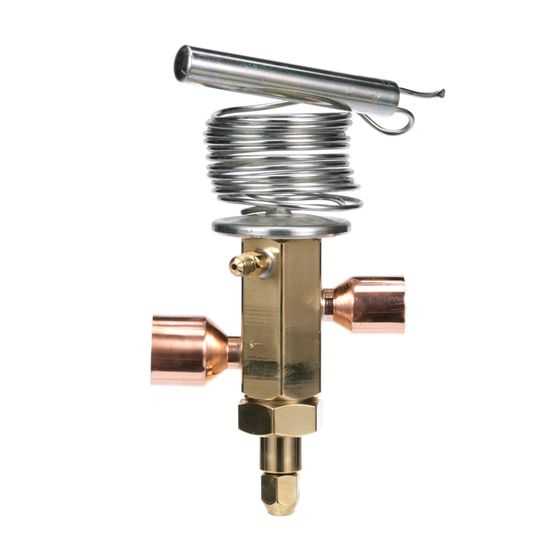

White Rodgers - 061866 The TRAE Series is a large capacity valve for chiller, heat pump, refrigeration, and air conditioning applications.
Features:
- Suitable for Bi-directional applications
- External superheat adjustment
- Integral body with straight-thru connections
- Balanced port design improves valve operation and stability over wide loads and evaporator temperature range
- Solid copper connections
- Large diaphragm provides superior stability
Additional Information
Length10 Ft. Capillary
Inlet Connection Size1-1/8 ODF Solder
Outlet Connection Size1-3/8 ODF Solder
Maximum Working Pressure450 psig
Refrigerant CodeH (R-22, Interchangeable with R-407C)
Charge CodeC (Medium Temp)
Adjustable SuperheatYes
EqualizerExternal
Body DesignStraight Thru
Capacity (Nominal)70 Tons
