category:
Thermostatic Expansion Valves
manufacturer:
White Rodgers
mpn:
064217
subcategory:
TRAE Series Valves
Product Description

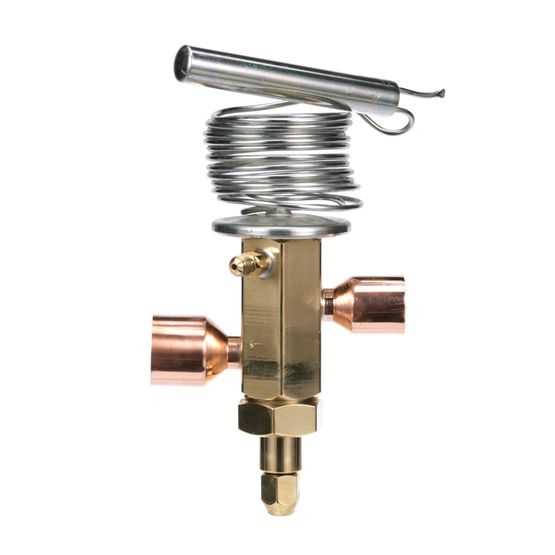

White Rodgers - 064217 The TRAE Plus Series is a large capacity valve designed for refrigeration, air conditioning, heat pump, and chiller applications.
Features:
- Stainless steel power element eliminates corrosion and prevents valve failure
- External superheat adjustment
- Replaceable power element and cage assembly for full serviceability
- Double balanced port design improves operation and stability over wide loads and evaporator temperature ranges
- Square body with straight-thru connections
- Large diaphragm provides superior stability
- Permanent inlet strainer
Additional Information
Length10 Ft. Capillary
Inlet Connection Size1-1/8 ODF Solder
Outlet Connection Size1-3/8 ODF Solder
Maximum Working Pressure450 psig
Refrigerant CodeS (R-404A, Interchangeable with R-502 and R-507)
Charge CodeC (Medium Temp)
Adjustable SuperheatYes
EqualizerExternal
Body DesignStraight Thru
Capacity (Nominal)35 Tons
Torque Power Assembly375 - 425 in. lbs.
