category:
Valves
manufacturer:
White Rodgers
mpn:
1840028
subcategory:
Refrigerant Solenoid Valves

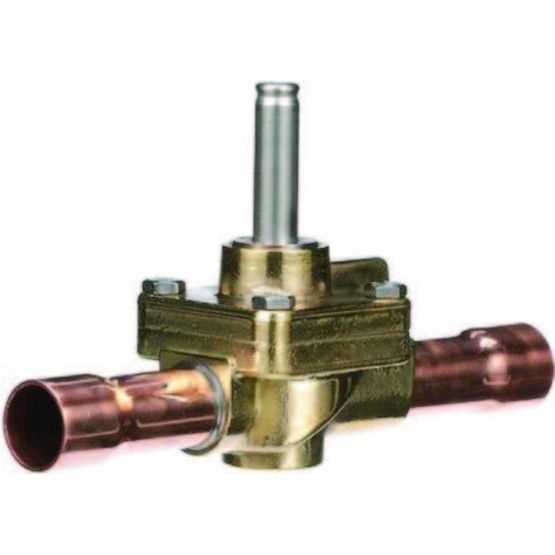

The 250RA is a 2-way, normally closed diaphragm valve with a port size 1", 1-1/8" X 1-1/8" ODF extended ends, body style straight thru with manual opening stem, coil VLC.
Features:
- Single coil family fits all sizes
- Can be brazed into the line without disassembly
- Compatible with A1 and A2L refrigerants
- PTFE upgraded diaphragm design for high temperature applications
- Extended ends for easy installation (standard)
Additional Information
Maximum Fluid Temperature250 Degrees F
Maximum Working Pressure680 psig
MOPD300 psig
UL/CUL File NumberMP604
