category:
Thermostats
country_of_origin:
US
manufacturer:
White Rodgers
mpn:
1E50N-301
subcategory:
Kits and Accessories
Product Description

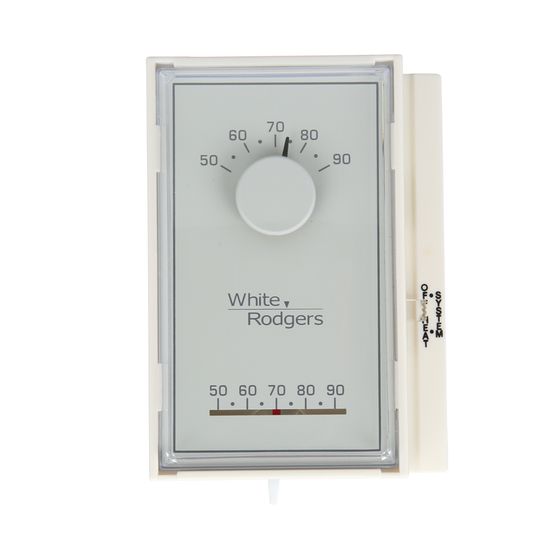

White Rodgers - 1E50N-301 Mercury-free replacement for White-Rodgers and competitive models installed over the past 50 years.
Features:
- Mercury free snap-action contacts with dust cover
- Vertical model
- Built in bimetal thermometer
- Same footprint since the introduction of the series saves time and aggravation, so wall marks are not a problem and no cover-up wallplate is necessary
- 24 volt or 750 mV options
Additional Information
VoltagemV to 30 Vac 50/60 Hz
AccessoriesIncludes temperature locking or limiting Kit; Wallplate (no system switch); Switched subbase Heat-Off
Overall Dimensions4.5H X 3.25W X 1.63D
Dimensions4.5?H X 3.25?W X 1.63?D
Typical ApplicationsGas/Oil/Electric, but does not control fan on a call for heat
Stages Heat/CoolSingle Stage - 1H/0C
StyleVertical
3-Wire Zone Valve ConnectionNo
Millivolt CompatibleYes
Heat Pump (No Auxiliary Heat)No
Electric Heat StripNo
Electric Heat Fan Control (Systems that Require (G terminal) on Call for Heat)No
U.S. Only or Canadian Only ModelU.S. only
Control Range50 to 90?F
TerminalsRH, W
Heat AnticipatorAdjustable from 0.15 to 1.2 Amps
