Product Description

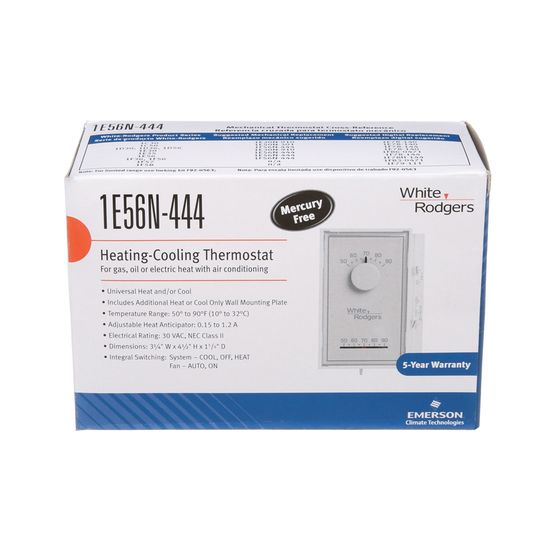

White Rodgers - 1E56N-444 Mercury-free replacement for White-Rodgers and competitive models installed over the past 50 years.
Features:
- Mercury free snap-action contacts with dust cover
- Vertical model
- Built in bimetal thermometer
- Same footprint since the introduction of the series saves time and aggravation, so wall marks are not a problem and no cover-up wallplate is necessary
- 24 volt, 750 mV and 3 - wire zone options
Additional Information
VoltagemV to 30 Vac 50/60 Hz
AccessoriesIncludes Wallplate cool only or 3-wire zone (no system switch); Switched subbase Heat-Off-Cool Fan Auto-On
Overall Dimensions4.5H X 3.25W X 1.63D
Dimensions4.5?H X 3.25?W X 1.63?D
Typical ApplicationsGas/Oil/Electric
Stages Heat/CoolSingle Stage - 1H/1C, Conventional or Heat Pump No Aux
StyleVertical
3-Wire Zone Valve ConnectionYes
Millivolt CompatibleYes
Heat Pump (No Auxiliary Heat)Yes
Electric Heat StripYes
Electric Heat Fan Control (Systems that Require (G terminal) on Call for Heat)Yes
U.S. Only or Canadian Only ModelU.S. only
Control Range50 to 90?F
TerminalsRC, RH, W, Y, O, B, G, A
Heat AnticipatorAdjustable from 0.15 to 1.2 Amps
