White Rodgers 36J22Y-212 36J22Y-212, 36G-36J Series Gas Valves

White Rodgers 36J22Y-212 36J22Y-212, 36G-36J Series Gas Valves

Dropship

Get it by Mon, Jun 30 - Sat, Jul 05

SKU kpi002-36J22Y-212

0
(0 rating)
$71.41 USD
$71.41 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Gas Valves
manufacturer: White Rodgers
mpn: 36J22Y-212
subcategory: Furnace Gas Valve

Product Description

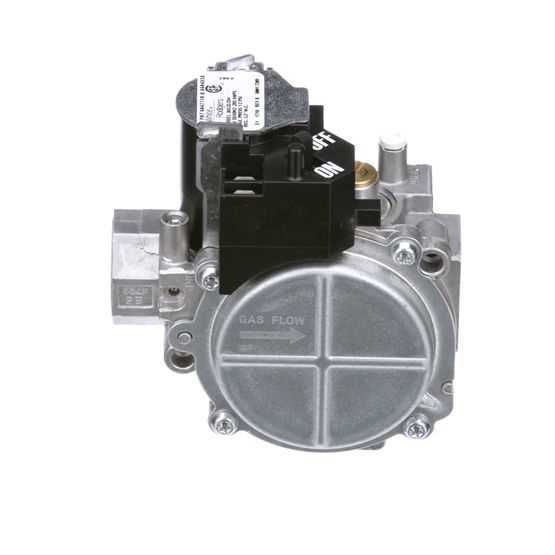

White Rodgers - 36J22Y-212 Goodman replacement for single stage HSI/DSI gas valve with maximum regulation feature, 24 Vac, 1/2 in X 1/2 in NPT, Fast Opening, Inlet / Outlet Pressure Taps, LP Gas Conversion Kit. Replaces Goodman 36J22Y-202, 0151M00037, 0151M00037S

Features:

  • Designed for Hot Surface and Direct Spark Ignition systems and features a compact footprint and versatile range
  • Fast open, single stage
  • Electric on-off switch and convenient quick connect coil terminals and built-in pressure taps
  • Tamper resistant screws and controlled gasket compression to withstand high inlet pressures
  • Mounts in any position including upside down

Additional Information

Operating Voltage24 Vac 50/60 Hz
Temperature Operating Range-40 to 175°F (-40 to 79°C)
Maximum Pressure Rating1/2 in. PSI (14.0 in. WC)
Pilot Gas ConnectionCompression fitting for 1/4 OD tubing
Inlet Outlet Pressure Taps1/8 NPT
Agency ApprovalsCSA (Canada US)
