Product Description

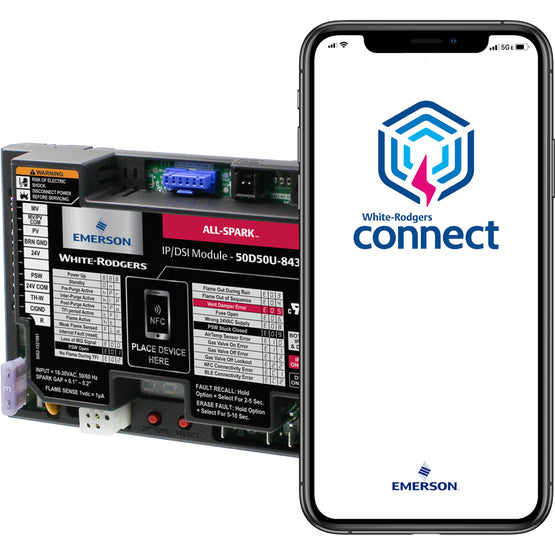

White Rodgers - 50D50U-843 All-Spark universal intermittent pilot/direct spark 24V ignition module. Integrated NFC for configuration and diagnostics using the White-Rodgers Connect app. Replaces over 1000 24V IP + DSI part numbers.
Features:
- Configurable for both 24V intermittent pilot and direct spark ignition modules
- Streamline inventory by replacing over 1000+ 24V IP/DSI part numbers
- Quick configuration without power and simple diagnostics with the White-Rodgers Connect app
- 7-Segment display provides additional configuration options and expanded fault code message reporting
- Rajah and spade spark terminals on-board eliminate the need for an external adapter
- Applications include gas furnaces, water heaters, boilers, cooking and laundry equipment, unit heaters, infrared and tube heaters
- Easy install harness converts old board wiring to fit All-Spark
- Use F67-8535 (sold separately) to maintain temperature without an external thermostat in infrared and tube heaters
Additional Information
Humidity Range5% to 93% relative humidity (non-condensing)
Voltage (Low)24 Vac, 50/60 Hz
Voltage (Line)120 Vac, 50/60 Hz
Temperature Range Ambient Operating-40 degrees to 175 degrees F (-40 degrees to 79 degrees C)
