category:
Thermostatic Expansion Valves
manufacturer:
White Rodgers
mpn:
055125
subcategory:
TLE & TX7 Series Valves
Product Description

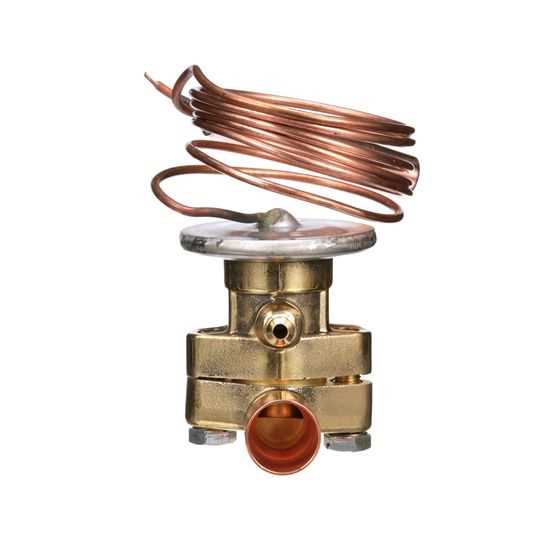

White Rodgers - 055125 The TLE Series is designed for air conditioning, heat pumps, transportation and commercial refrigeration. Take-Apart construction improves serviceability with replaceable/interchangeable parts. TLE valves do not have an external superheat adjustment.
Features:
- Stainless steel power element eliminates corrosion and prevents valve failure
- Non-adjustable superheat to maintain factory setting
- Bi-directional capability for heat pump applications (external equalizer required)
- Take-Apart construction for easy field service
Additional Information
Length5 Ft. Capillary
Inlet Connection SizeValve Less Flange
Outlet Connection SizeValve Less Flange
Maximum Working Pressure450 psig
Refrigerant CodeH (R-22, Interchangeable with R-407C)
Charge CodeW (Maximum Operating Pressure, Pressure Limiting)
EqualizerExternal
BleedNo
Body DesignValve Less Flange
Capacity (Nominal)10 Tons
Capscrew Torque300 in. lbs.
