category:
Thermostatic Expansion Valves
manufacturer:
White Rodgers
mpn:
056225
subcategory:
HFES Series Valves
Product Description

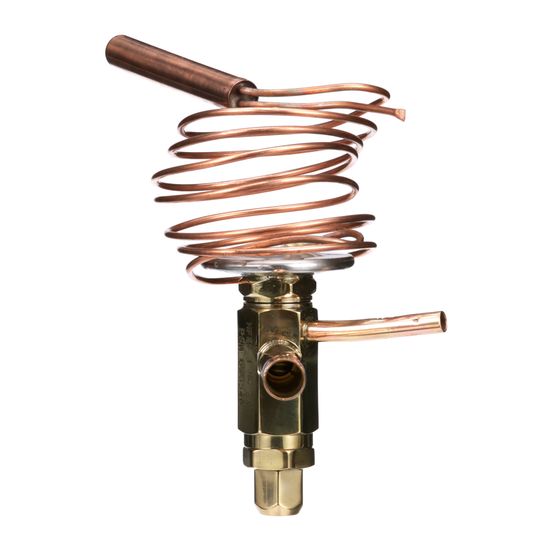

White Rodgers - 056225 The HF Series is a balanced ported valve designed for refrigeration, air conditioning and heat pump applications.
Features:
- Stainless steel replaceable power element eliminates corrosion and prevents valve failure
- Two body sizes provide capacities from 1/4 to 20 tons
Additional Information
Length5 ft. Capillary
Inlet Connection Size3/8 ODF Solder
Outlet Connection Size1/2 ODF Solder
Maximum Working Pressure450 psig
Refrigerant CodeR (R-502, interchangeable with R-404A and R-507)
Charge CodeZ (Low Temp)
Adjustable SuperheatYes
EqualizerExternal
BleedNo
Body DesignStraight Thru
StrainerNot Removable
