Product details
category: Thermostatic Expansion Valves
manufacturer: White Rodgers
mpn: 066153
subcategory: TI & TFE Series Valves

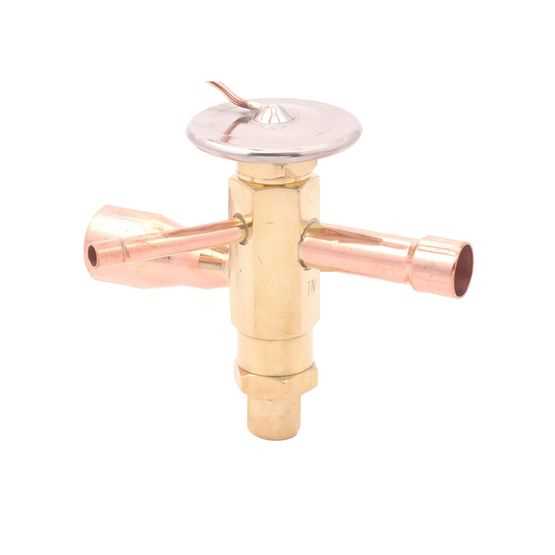

The TFE R-22 Series is designed for large tonnage heat pump, air conditioning, and commercial refrigeration applications.
Features:
- Take-Apart construction for easy field service
- Replaceable power element
- Bi-directional capability
- Stainless steel power assembly up to 18 tons
- Balanced port construction compensates for changes in operating pressures due to varying ambients, or widely varying evaporator loads
- Bi-directional control capacity
- External equalizer
Additional Information
Length5 ft. Capillary
Inlet Connection Size5/8 ODF Solder
Outlet Connection Size7/8 ODF Solder
Maximum Working Pressure450 psig
Refrigerant CodeZ (R-410A)
Charge CodeAA (Wide Range)
Adjustable SuperheatYes
EqualizerExternal
Bleed0.15
Body DesignStraight Thru
Capacity (Nominal)20 Tons
