category:
Thermostatic Expansion Valves
manufacturer:
White Rodgers
mpn:
066517
subcategory:
HFS & HFSC Series Valves
Product Description

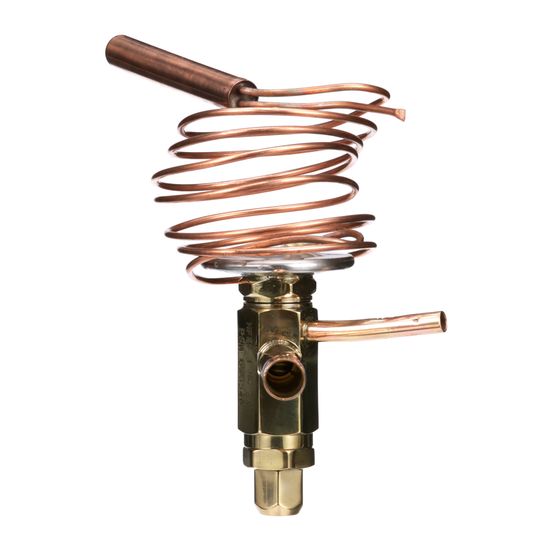

White Rodgers - 066517 The HF Series is a balanced ported valve designed for refrigeration, air conditioning and heat pump applications.
Features:
- Stainless steel replaceable power element eliminates corrosion and prevents valve failure
- Two body sizes provide capacities from 1/4 to 20 tons
Additional Information
Length30 In. Capillary
Inlet Connection Size1/4 ODF Solder
Outlet Connection Size1/2 ODF Solder
Maximum Working Pressure450 psig
Refrigerant CodeS (R-404A, Interchangeable with R-502 and R-507)
Charge CodeW (Maximum Operating Pressure, Pressure Limiting)
Adjustable SuperheatYes
EqualizerInternal
BleedNo
Body DesignStraight Thru
StrainerNot Removable
