category:
Thermostatic Expansion Valves
manufacturer:
White Rodgers
mpn:
806818
subcategory:
TLE & TX7 Series Valves
Product Description

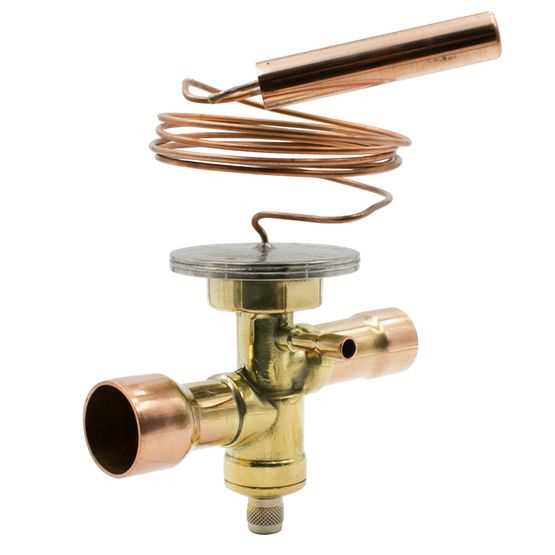

White Rodgers - 806818 TX7 Thermostatic Expansion Valve Balanced Ported Design forAir Conditioning, Heat Pumps, Close Control and Industrial ProcessCooling Applications
Features:
- Hermetic, leak-free construction
- Available for applications up to 50 ton (R-410A)
- Enhanced power element design offers extended valve life
- Laser welded stainless steel power element prevents corrosion
- Bi-directional flow capability allows one valve to control the superheat in
- Only available with adjustable superheat
- External equalizer with 1/4 ODF connection
Additional Information
Refrigerant CodeZ (R-410A, R-32)
Charge CodeZ1 (Wide Range, MOP 175 psig)
Adjustable SuperheatYes
EqualizerExternal (1/4 ODF)
BleedNo
Internal CheckNo
Capacity (Tons Nominal)25
Inlet Connection7/8 ODF Solder
Outlet Connection1-1/8 ODF Solder
Capillary Tube Length5 Ft.
Body StyleStraight Thru
