Product details
category: Thermostatic Expansion Valves
manufacturer: White Rodgers
mpn: 806832
subcategory: TLE & TX7 Series Valves

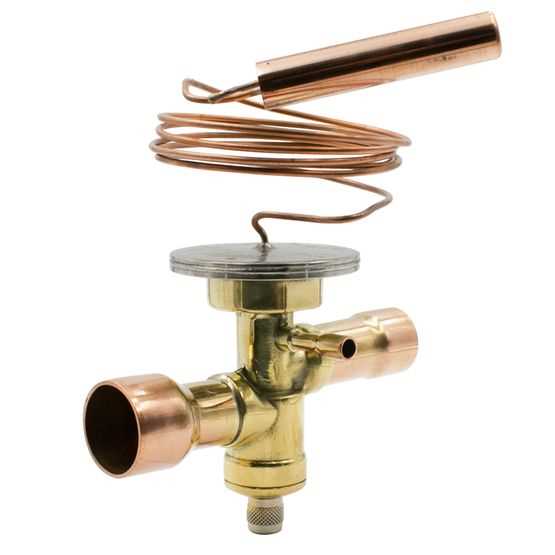

TX7 Thermostatic Expansion Valve Balanced Ported Design forAir Conditioning, Heat Pumps, Close Control and Industrial ProcessCooling Applications
Features:
- Hermetic, leak-free construction
- Available for applications up to 50 ton (R-410A)
- Enhanced power element design offers extended valve life
- Laser welded stainless steel power element prevents corrosion
- Bi-directional flow capability allows one valve to control the superheat in
- Only available with adjustable superheat
- External equalizer with 1/4 ODF connection
Additional Information
Refrigerant CodeM (R-134a, R-450A, R-513A)
Charge CodeM0 (Medium Range)
Adjustable SuperheatYes
EqualizerExternal (1/4 ODF)
BleedNo
Internal CheckNo
Capacity (Tons Nominal)13
Inlet Connection7/8 ODF Solder
Outlet Connection1-1/8 ODF Solder
Capillary Tube Length5 Ft.
Body StyleStraight Thru
