category:
Thermostatic Expansion Valves
manufacturer:
White Rodgers
mpn:
091012
subcategory:
NXT Series Valves
Product Description

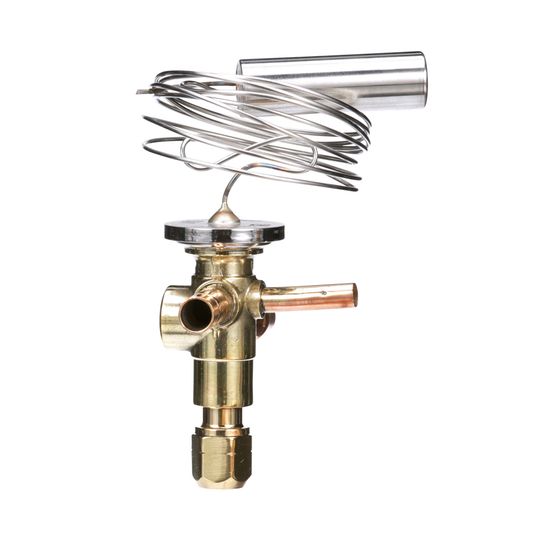

White Rodgers - 091012 The Emerson NXT Series is a balanced ported valve designed for high efficiency R-410A air conditioning and heat pump applications. NXT Series valves operate over a wide range of conditions and applications, while offering excellent performance, superior reliability, and unparalleled valve life.
Features:
- Precision superheat control optimized for R-410 A systems
- Enhanced power element design offers extended valve life
- Stainless steel power element eliminates corrosion and prevents valve failure
- Laser etched identification markings for permanent legibility
- Hermetic, leak-free construction of all joints
- Compact size allows installation in limited spaces
- Bi-directional capability allows one valve to control the superheat in both cooling and heating modes for close-coupled or packaged heat pump applications
- Balanced port construction compensates for changes in operating pressures due to varying ambients, gas defrost, heat reclaim, or widely varying evaporator loads
- External equalizer is standard
- Screens on ODF inlet connections
Additional Information
Length5 Ft. Capillary
Inlet Connection Size3/8 ODF
Outlet Connection Size1/2 ODF
Maximum Working Pressure700 psig
Refrigerant CodeZ (R-410A)
Charge CodeAA (Wide Range)
Adjustable SuperheatYes
EqualizerExternal (1/4 ODF)
BleedNo
Body DesignA (Adjustable Superheat, with Check, Straight Thru)
Capacity (Nominal)2 Tons
Check ValveYes
R-410A Operating Range(R-410A) -20°F to +50°F
