manufacturer:
White Rodgers
mpn:
1838462
Product Description

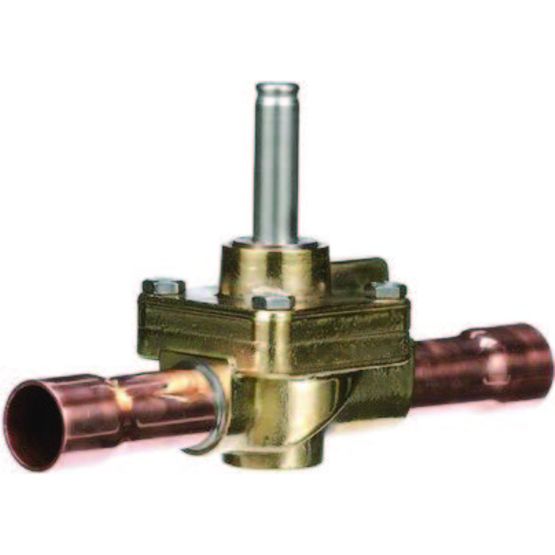

White Rodgers - 1838462 The 250RA is a 2-way, normally closed diaphragm valve used for liquid, suction, and hot gas service. Upgraded diaphragm design for high temperature applications.
Features:
- Single coil family fits all sizes
- Can be brazed into the line without disassembly
- Compatible with all A1 and A2L class refrigerants
- PTFE upgraded diaphragm design for high temperature and pressure applications
- Extended ends for easy installation (standard)
- Mounting stud models can be field converted to manual stem
Additional Information
Maximum Fluid TemperatureA1: 250 Degrees F A2L: 221 Degrees F
Maximum Working Pressure680 psig
MOPD300 psig
UL/CUL File NumberMP604
