manufacturer:
White Rodgers
mpn:
1832079
Product Description

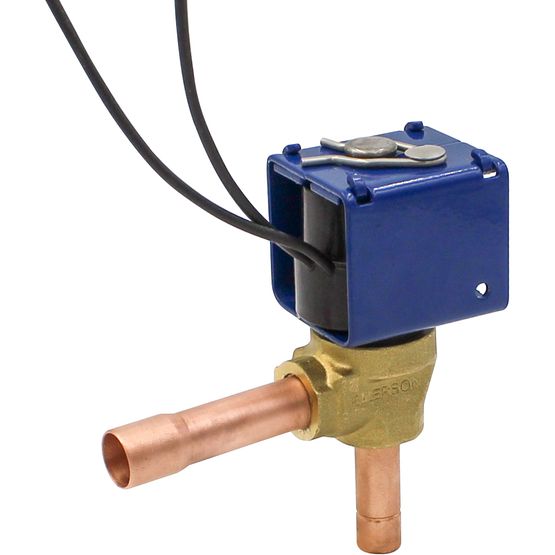

White Rodgers - 1832079 PM Series Modulated Expansion Valve, 3/8 in. X 1/2 in. ODF Connections, Valve Size 5
Features:
- Direct-acting solenoid gate valve with six fixed-capacity sizes
- Brass forged body with copper connections
- Compatible with a wide range of system refrigerants
- Coils: AM Series 50/60 Hz (24, 120, 208-240 Vac) and ASC2 Series 50/60 Hz (24, 120 Vac)
- Upstream filter-drier recommended: Emerson EK or ALF
- Controller recommended: Emerson XM679, CC200, XEV12D
Additional Information
Temperature, Maximum Fluid221 degrees F (105 degrees C)
Maximum Working Pressure680 psig (47 bar)
Maximum Operating Pressure Differential500 psig (35 bar)
CertificationsUL/CUL File Number MP604
