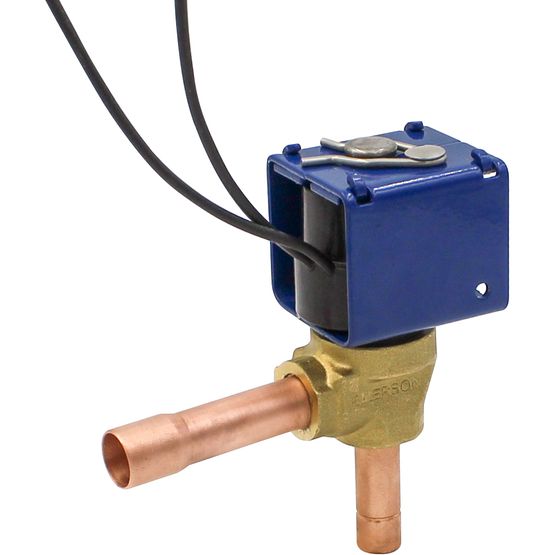

White Rodgers PM 6S34VLC-01 PM Series Modulated Expansion Valves(Valve Size 6)

White Rodgers PM 6S34VLC-01 PM Series Modulated Expansion Valves(Valve Size 6)

Dropship

SKU SKU:kpi002-1832087

Regular price $136.50 USD
Regular price Sale price $136.50 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
manufacturer: White Rodgers
mpn: 1832087

PM Series Modulated Expansion Valve, 3/8 in. X 1/2 in. ODF Connections, Valve Size 6

Features:

  • Direct-acting solenoid gate valve with six fixed-capacity sizes
  • Brass forged body with copper connections
  • Compatible with a wide range of system refrigerants
  • Coils: AM Series 50/60 Hz (24, 120, 208-240 Vac) and ASC2 Series 50/60 Hz (24, 120 Vac)
  • Upstream filter-drier recommended: Emerson EK or ALF
  • Controller recommended: Emerson XM679, CC200, XEV12D

Additional Information

Temperature, Maximum Fluid221 degrees F (105 degrees C)
Maximum Working Pressure680 psig (47 bar)
Maximum Operating Pressure Differential500 psig (35 bar)
CertificationsUL/CUL File Number MP604
