category:
Pressure Switches
manufacture:
Winters Instruments
mpn:
1WPSL104N
subcategory:
1Wps Compact Pressure Switch
Product Description

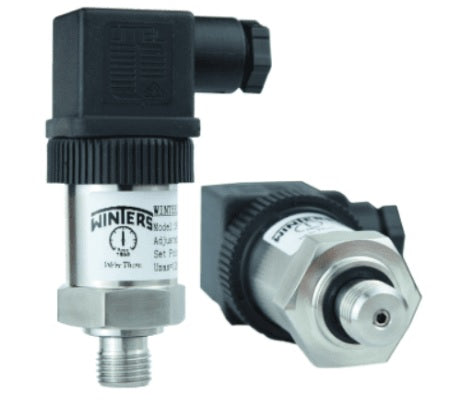

Winters Instruments - 1WPSL104N
Features
- Compact all-purpose pressure switch
- All stainless steel housing with diaphragm or piston actuated sensor
- Wide range of electrical switching outputs
- 1 x SPDT
- IP65 standard, IP67 optional
- Built-in restrictor screw to safeguard against pulsations
- 5-year warranty
Applications
Suitable for all machinery in commercial and industrial sectors
Additional Information
Housing Material304L Stainless Steel
Accuracy2% of full scale
Pressure Connection1/4" NPT, G1/4", M14x1.5, M20x1.5
Electrical ConnectionDIN ISO, cable outlet optional
Wetted PartsDiaphragm sensor - NBR, Piston sensor - 304L SS with NBR o-ring
Set Point AdjustmentFactory set or Field selectable
Deadband10-20% of setpoint (fixed)
Contact Rating2A 30VDC; 1A 42VDC; 0.15A 115VDC; 3A 42VAC; 5A 125VAC; 3A 250VAC
Sensor TypeDiaphragm (low pressure) or Piston (high pressure)
Number of Contacts1 X SPDT
Ambient/Process Temperature-4oF to 185oF (-20oC to 85oC)
Enclosure RatingIP65 standard (DIN), IP67 optional (cable leads)
Vibration10g 10-500 Hz, MIL-STD-202F
Shock50g 11 ms, MIL-S-901C
Operating Life1 million cycles
Weight0.22 LBS (0.1 kg)
