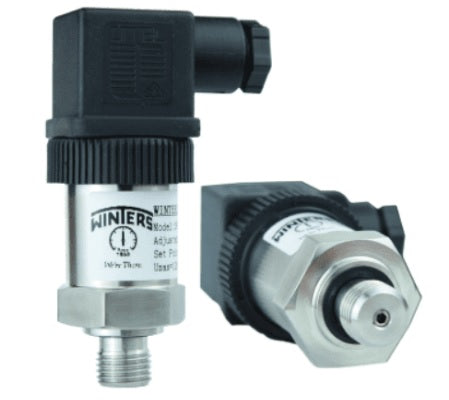

Winters Instruments 1WPSL144N 1Wps Compact Pressure Switch

Winters Instruments 1WPSL144N 1Wps Compact Pressure Switch

Dropship

Get it by Mon, Jun 09 - Sat, Jun 14

SKU kpi073-1WPSL144N

0
(0 rating)
$228.67 USD
$228.67 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Pressure Switches
manufacture: Winters Instruments
mpn: 1WPSL144N
subcategory: 1Wps Compact Pressure Switch

Product Description

Winters Instruments - 1WPSL144N

Features

  • Compact all-purpose pressure switch
  • All stainless steel housing with diaphragm or piston actuated sensor
  • Wide range of electrical switching outputs
  • 1 x SPDT
  • IP65 standard, IP67 optional
  • Built-in restrictor screw to safeguard against pulsations
  • 5-year warranty

Applications

Suitable for all machinery in commercial and industrial sectors

Additional Information

Housing Material304L Stainless Steel
Accuracy2% of full scale
Pressure Connection1/4" NPT, G1/4", M14x1.5, M20x1.5
Electrical ConnectionDIN ISO, cable outlet optional
Wetted PartsDiaphragm sensor - NBR, Piston sensor - 304L SS with NBR o-ring
Set Point AdjustmentFactory set or Field selectable
Deadband10-20% of setpoint (fixed)
Contact Rating2A 30VDC; 1A 42VDC; 0.15A 115VDC; 3A 42VAC; 5A 125VAC; 3A 250VAC
Sensor TypeDiaphragm (low pressure) or Piston (high pressure)
Number of Contacts1 X SPDT
Ambient/Process Temperature-4oF to 185oF (-20oC to 85oC)
Enclosure RatingIP65 standard (DIN), IP67 optional (cable leads)
Vibration10g 10-500 Hz, MIL-STD-202F
Shock50g 11 ms, MIL-S-901C
Operating Life1 million cycles
Weight0.22 LBS (0.1 kg)
