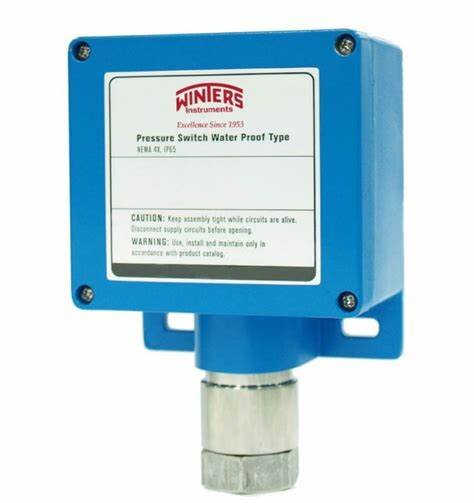

Winters Instruments - 5WPS0106F4F201
Features
- Low pressure to 300 psi
- High current ratings for 1 x SPDT or 2 x SPDT switches
- Fixed deadband
- Die cast aluminum construction with welded seal
- 1% accuracy
- NEMA 4 4X, IP66 rated
- RU recognized (switch only), fi le no E12252
- CRN registration
Applications
Suitable for differential pressure applications including filter monitoring and control
Additional Information
HousingHeavy-duty die-cast aluminum, blue colour
Accuracy+/- 1% of the adjustable set-point range
Pressure ConnectionFemale 1/4" NPT or BSP
Electrical ConnectionFemale 1/2" or 3/4" NPT, M20xP1.5
Wetted PartsLow pressure ranges - 316 Stainless Steel welded Titanium, High pressure ranges - 316 Stainless Steel welded
Set Point AdjustmentField selectable
DeadbandFixed see Order Codes
Contact Rating15A @ 125/250VAC, 0.4A @ 125VDC, 3A @ 30VDC, Gold contact microswitch:1A @ 125/250VAC
No. of Contacts1 x SPDT or 2 x SPDT
Ambient/Process Temperature-30 to 205 deg C (-22 to 400 deg F)
Enclosure RatingNEMA 4 4X, IP66, Protection against liquid and solid ingress, suitable for indoor or outdoor use and resistant to corrosion
ApprovalsRU recognized, file no E12252 (switch only), CRN registration pending
Weight4.95 lbs (2.25 kg)
CategoryPressure Switches
ManufactureWinters Instruments
Mpn5WPS0106F4F201
Subcategory5Wps Differential Pressure Switch
