category:
Pressure Switches
manufacture:
Winters Instruments
mpn:
5WPS0206F4F201
subcategory:
5Wps Differential Pressure Switch
Product Description

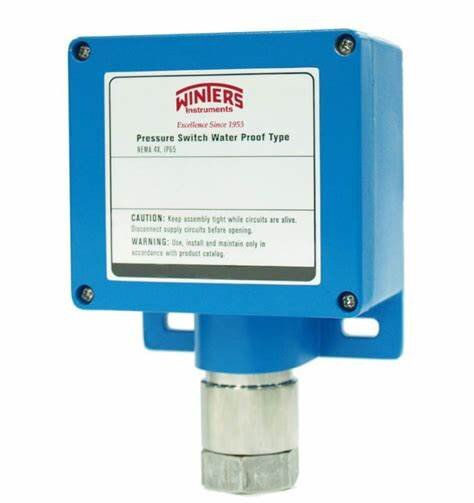

Winters Instruments - 5WPS0206F4F201
Features
- Low pressure to 300 psi
- High current ratings for 1 x SPDT or 2 x SPDT switches
- Fixed deadband
- Die cast aluminum construction with welded seal
- 1% accuracy
- NEMA 4 4X, IP66 rated
- RU recognized (switch only), fi le no E12252
- CRN registration
Applications
Suitable for differential pressure applications including filter monitoring and control
Additional Information
HousingHeavy-duty die-cast aluminum, blue colour
Accuracy+/- 1% of the adjustable set-point range
Pressure ConnectionFemale 1/4" NPT or BSP
Electrical ConnectionFemale 1/2" or 3/4" NPT, M20xP1.5
Wetted PartsLow pressure ranges - 316 Stainless Steel welded Titanium, High pressure ranges - 316 Stainless Steel welded
Set Point AdjustmentField selectable
DeadbandFixed see Order Codes
Contact Rating15A @ 125/250VAC, 0.4A @ 125VDC, 3A @ 30VDC, Gold contact microswitch:1A @ 125/250VAC
No. of Contacts1 x SPDT or 2 x SPDT
Ambient/Process Temperature-30 to 205 deg C (-22 to 400 deg F)
Enclosure RatingNEMA 4 4X, IP66, Protection against liquid and solid ingress, suitable for indoor or outdoor use and resistant to corrosion
ApprovalsRU recognized, file no E12252 (switch only), CRN registration pending
Weight4.95 lbs (2.25 kg)
