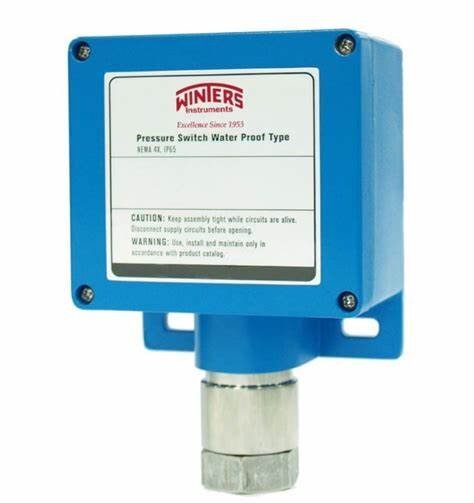

Winters Instruments 5WPS0406F4F201 5Wps Differential Pressure Switch

Winters Instruments 5WPS0406F4F201 5Wps Differential Pressure Switch

Dropship

SKU SKU:kpi073-5WPS0406F4F201

Regular price $2,445.10 USD
Regular price Sale price $2,445.10 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Pressure Switches
manufacture: Winters Instruments
mpn: 5WPS0406F4F201
subcategory: 5Wps Differential Pressure Switch

Winters Instruments - 5WPS0406F4F201

Features

  • Low pressure to 300 psi
  • High current ratings for 1 x SPDT or 2 x SPDT switches
  • Fixed deadband
  • Die cast aluminum construction with welded seal
  • 1% accuracy
  • NEMA 4 4X, IP66 rated
  • RU recognized (switch only), fi le no E12252
  • CRN registration

Applications

Suitable for differential pressure applications including filter monitoring and control

Additional Information

HousingHeavy-duty die-cast aluminum, blue colour
Accuracy+/- 1% of the adjustable set-point range
Pressure ConnectionFemale 1/4" NPT or BSP
Electrical ConnectionFemale 1/2" or 3/4" NPT, M20xP1.5
Wetted PartsLow pressure ranges - 316 Stainless Steel welded Titanium, High pressure ranges - 316 Stainless Steel welded
Set Point AdjustmentField selectable
DeadbandFixed see Order Codes
Contact Rating15A @ 125/250VAC, 0.4A @ 125VDC, 3A @ 30VDC, Gold contact microswitch:1A @ 125/250VAC
No. of Contacts1 x SPDT or 2 x SPDT
Ambient/Process Temperature-30 to 205 deg C (-22 to 400 deg F)
Enclosure RatingNEMA 4 4X, IP66, Protection against liquid and solid ingress, suitable for indoor or outdoor use and resistant to corrosion
ApprovalsRU recognized, file no E12252 (switch only), CRN registration pending
Weight4.95 lbs (2.25 kg)
