Designed for hazardous areas including Oil Gas, Petrochemical, Power Generation, Waste Water and others
Additional Information

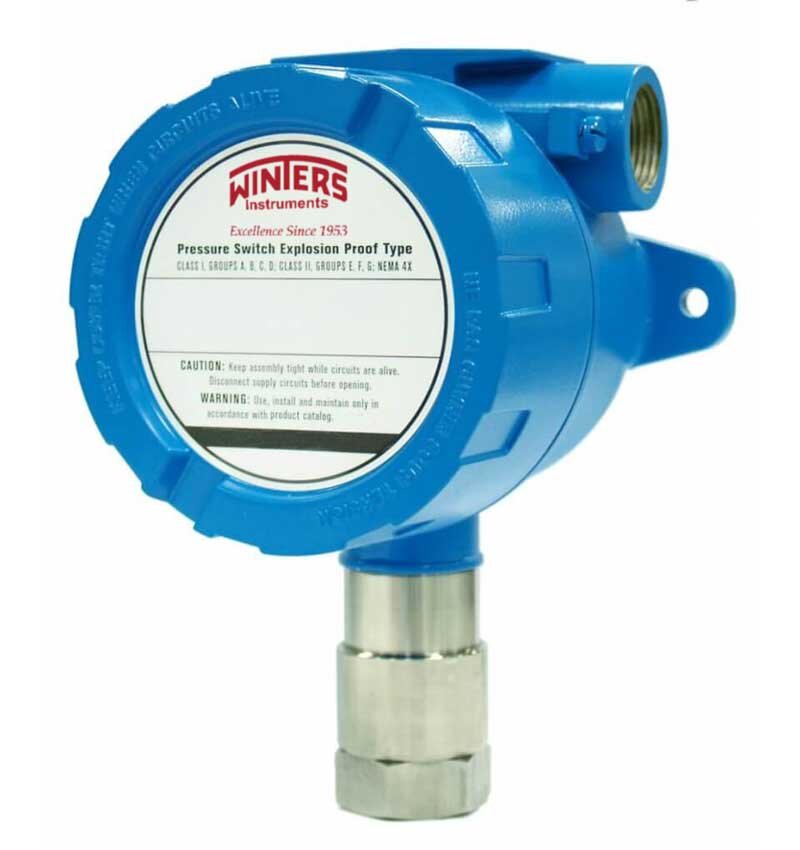

HousingHeavy-duty explosion-proof die-cast aluminum, blue colour
Accuracy+/- 1% of the adjustable set-point range
Pressure ConnectionFemale 1/4" or 1/2" NPT, BSP and M20xP1.5
Electrical ConnectionFemale 1/2" or 3/4" NPT, M20xP1.5
Wetted Parts316 Stainless Steel welded
Set Point AdjustmentField selectable
DeadbandFixed or Adjustable, see Order Codes
Contact RatingFixed Deadband:15A @ 125/250VAC, 0.4A @ 125VDC, 3A @ 30VDC, Hermetically sealed switch 5A @ 250VAC, Gold contact microswitch 1A @ 125/250VAC, Adjustable Deadband:20A @ 125/250/480VAC, 5A @ 125VDC
No. of Contacts1 x SPDT or 2 x SPDT (only 1 x SPDT available for Adjustable Deadband range)
Ambient/Process Temperature-30 to 205 deg C (-22 to 400 deg F)
Enclosure RatingIP68, Protection from dust ingress and submersion in fresh water to a maximum depth of 1.5 metres for up to 30 minutes
ApprovalscULus listed, Class I Divison 1 Groups A, B, C D; Class II Divison 1 Groups E, F G (housing), RU recognized, fi le no E12252 (switch only), CRN registration pending
Weight3.95 lbs (1.79 kg)
