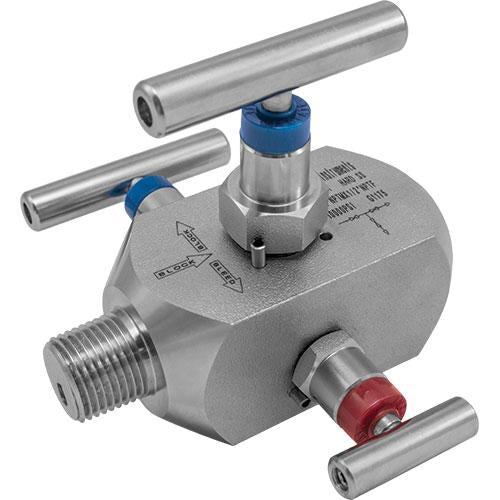

Winters Instruments - BBV3401N
Features
- Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
- Block bleed design allows pressure to be bled off without disturbing the permanent piping installation, allowing quick and easy removal of replacement instruments
- The 1/4″ NPT vent plug is located 90° to the left and may be removed and replaced with exhaust piping to direct the fluids to a safe location
- Available in Hard Seat (10,000 psi)
- All stems are 316 stainless steel
- CRN registered
- 5 year warranty
Applications
Ideally suited for severe duty oil and gas installations including refineries and processing plants as well as water treatment plants, power plants and hydraulic applications
Additional Information
Body(For Stainless Steel)316 SS
Bonnet(For Stainless Steel)316 SS
Dustcap(For Stainless Steel)Nylon
Needle / Needle Tip(For Stainless Steel)316 SS
Handle(For Stainless Steel)304 SS
Screw(For Stainless Steel)304 SS
Fastening Screw(For Stainless Steel)304 SS
O-rings(For Stainless Steel)FKM
Gland Packing(For Stainless Steel)PTFE
Dwell Pin(For Stainless Steel)304 SS
Vent Plug(For Stainless Steel)316 SS
Body(For Stainless Steel NACE)316 SS NACE
Bonnet(For Stainless Steel NACE)316 SS NACE
Dustcap(For Stainless Steel NACE)Nylon
Needle / Needle Tip(For Stainless Steel NACE)316 SS NACE
Handle(For Stainless Steel NACE)304 SS
Screw(For Stainless Steel NACE)304 SS
Fastening Screw(For Stainless Steel NACE)304 SS
O-rings(For Stainless Steel NACE)FKM
Gland Packing(For Stainless Steel NACE)PTFE
Dwell Pin(For Stainless Steel NACE)304 SS
Vent Plug(For Stainless Steel NACE)316 SS NACE
CategoryValves
ManufactureWinters Instruments
MpnBBV3401N
SubcategoryBbv Double Block Bleed Valve
