category:
Valves
manufacture:
Winters Instruments
mpn:
BBV6221
subcategory:
Bbv Block Bleed Valve Two Hles
Product Description

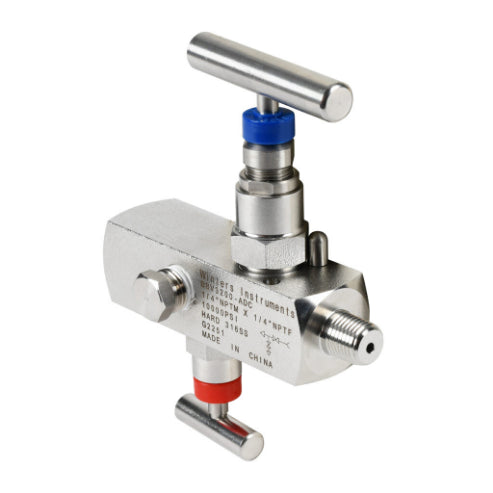

Winters Instruments - BBV6221
Features
- The one-piece body construction (no welding) provides strength and corrosion resistance
- Block bleed design allows pressure to be bled off without disturbing the permanent piping installation, allowing quick and easy removal of replacement instruments
- Available in Soft Seat (6,000 psi) and Hard Seat (10,000 psi)
- All stems are 316 stainless steel
- CRN registered
- 5 year warranty
Applications
Ideally suited for severe duty oil and gas installations including refineries and processing plants as well as water treatment plants, power plants and hydraulic applications
Additional Information
Body(For Carbon Steel Hard Seat)Carbon Steel
Bonnet(For Carbon Steel Hard Seat)Carbon Steel
Dustcap(For Carbon Steel Hard Seat)Nylon
Needle / Needle Tip(For Carbon Steel Hard Seat)316 SS
Handle(For Carbon Steel Hard Seat)Carbon Steel
Screw(For Carbon Steel Hard Seat)304 SS
Fastening Screw(For Carbon Steel Hard Seat)304 SS
O-rings(For Carbon Steel Hard Seat)FKM
Dwell Pin(For Carbon Steel Hard Seat)304 SS
Vent Plug(For Carbon Steel Hard Seat)Carbon Steel
Body(For Stainless Steel Hard Seat)316 SS
Bonnet(For Stainless Steel Hard Seat)316 SS
Dustcap(For Stainless Steel Hard Seat)Nylon
Needle / Needle Tip(For Stainless Steel Hard Seat)316 SS
Handle(For Stainless Steel Hard Seat)304 SS
Screw(For Stainless Steel Hard Seat)304 SS
Fastening Screw(For Stainless Steel Hard Seat)304 SS
O-rings(For Stainless Steel Hard Seat)FKM
Dwell Pin(For Stainless Steel Hard Seat)304 SS
Vent Plug(For Stainless Steel Hard Seat)316 SS
Body(For Stainless Steel NACE Hard Seat)316 SS NACE
Bonnet(For Stainless Steel NACE Hard Seat)316 SS NACE
Dustcap(For Stainless Steel NACE Hard Seat)Nylon
Needle / Needle Tip(For Stainless Steel NACE Hard Seat)316 SS NACE
Handle(For Stainless Steel NACE Hard Seat)304 SS
Screw(For Stainless Steel NACE Hard Seat)304 SS
Fastening Screw(For Stainless Steel NACE Hard Seat)304 SS
O-rings(For Stainless Steel NACE Hard Seat)FKM
Dwell Pin(For Stainless Steel NACE Hard Seat)304 SS
Vent Plug(For Stainless Steel NACE Hard Seat)316 SS NACE
Body(For Carbon Steel Soft Seat)Carbon Steel
Bonnet(For Carbon Steel Soft Seat)Carbon Steel
Dustcap(For Carbon Steel Soft Seat)Nylon
Needle / Needle Tip(For Carbon Steel Soft Seat)316 SS
Handle(For Carbon Steel Soft Seat)Carbon Steel
Screw(For Carbon Steel Soft Seat)304 SS
Fastening Screw(For Carbon Steel Soft Seat)304 SS
O-rings(For Carbon Steel Soft Seat)FKM
Seat(For Carbon Steel Soft Seat)Delrin
Dwell Pin(For Carbon Steel Soft Seat)304 SS
Vent Plug(For Carbon Steel Soft Seat)Carbon Steel
Body(For Stainless Steel Soft Seat)316 SS
Bonnet(For Stainless Steel Soft Seat)316 SS
Dustcap(For Stainless Steel Soft Seat)Nylon
Needle / Needle Tip(For Stainless Steel Soft Seat)316 SS
Handle(For Stainless Steel Soft Seat)304 SS
Screw(For Stainless Steel Soft Seat)304 SS
Fastening Screw(For Stainless Steel Soft Seat)304 SS
O-rings(For Stainless Steel Soft Seat)FKM
Seat(For Stainless Steel Soft Seat)Delrin
Dwell Pin(For Stainless Steel Soft Seat)304 SS
Vent Plug(For Stainless Steel Soft Seat)316 SS
