category:
Diaphragm Seals
manufacture:
Winters Instruments
mpn:
D30976
subcategory:
D30 High Pressure Diaphragm Seal
Product Description

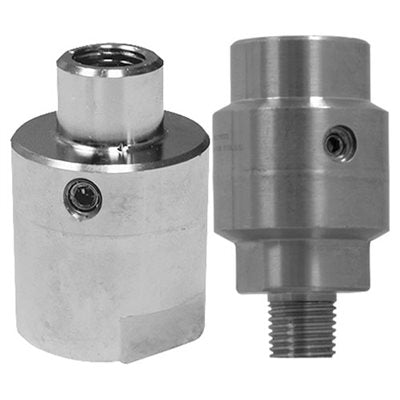

Winters Instruments - D30976
Features
- Compact, lightweight and economical
- Constructed of AISI 316 stainless steel and is welded together into a one piece unit
- ASME B40.100 compliant
- RoHS compliant
- CRN registered
- 5 year warranty
Applications
Offers protection for pressure instruments (gauges and transmitters) from corrosive, contaminated or viscous media|Ideally suited for applications where space limitations exist
Additional Information
HousingAISI 316 SS
DiaphragmAISI 316L SS, welded
Minimum Operating Pressure1,000 psi (6,900 kPa)
Maximum Operating Pressure6,000 psi (41,300 kPa)
Gauge Connection1/4” NPTF
Process Connection1/4” NPTF or NPTM
Process Temperature-49°F to 302°F (-45°C to 150°C)
