category:
Diaphragm Seals
manufacture:
Winters Instruments
mpn:
D40974
subcategory:
D40 Medium Duty Diaphragm Seal

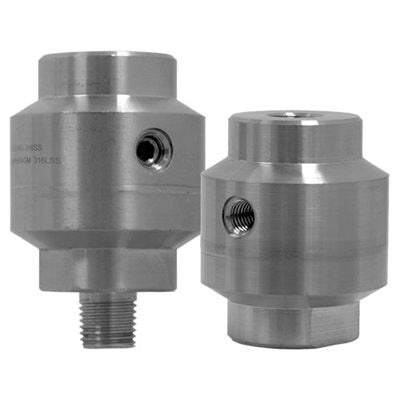

Winters Instruments - D40974
Features
- Compact (one piece), lightweight and economical
- ASME B40.100 compliant
- RoHS compliant
- CRN registered
- 5 year warranty
Applications
Ideally suited for applications where space limitations exist|Primarily utilized to protect gauges and transmitters from corrosive media|Utilized in many OEM applications
Additional Information
HousingAISI 316 SS
DiaphragmAISI 316L SS, welded
Minimum Operating Pressure30 psi (200 kPa)
Maximum Operating Pressure1,000 psi (6,900 kPa)
Gauge Connection1/4”, 1/2” NPTF
Process Connection1/4”, 1/2” NPTF or NPTM
Process Temperature-49°F to 302°F (-45°C to 150°C)
