category:
Pressure Gauges
manufacture:
Winters Instruments
mpn:
DPG203
subcategory:
Dpg Digital Pressure Gauge

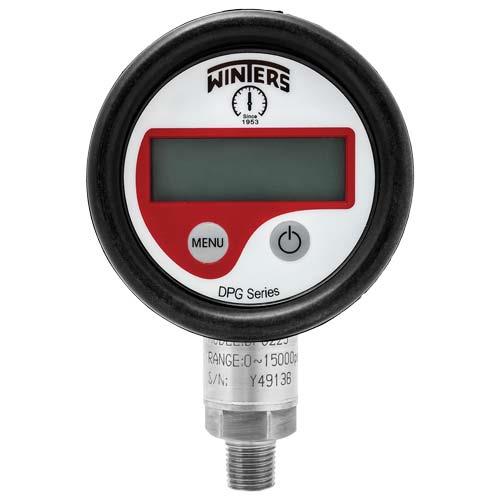

Winters Instruments - DPG203
Features
- Simple 2 button operation
- Reset to zero feature
- Backlight turns on when on/off button is pressed
- Option for display to remain continuously on
- Continuous Peak pressure indication option
- 316L welded diaphragm seal
- Rubber boot is standard
- ASME B40.100 compliant
- RoHS compliant
- ±1% accuracy (±0.5% optional for gauges up to 10,000 psi)
- 5 year warranty
- Digital gauges are useful instruments for reading pressure values and provide fast results with clear visibility. If you’re looking for digital gauges, look no further! Our DPG Digital Pressure Gauge is one of the top-performing digital gauges in the market.
Applications
Ideal for commercial and industrial applications in both test measurement and general purpose installations
Additional Information
Case Size2.5" (63mm)
Case MaterialABS
Rubber BootSilicone rubber
LCD Display2" x 3/4" (48mm x 16mm)
Connection1/4" NPT 304SS
Sensor316L welded, Piezo
Operation Life1 million cycles
Power Supply2 x AAA battery (1.5V); Sold separately
Battery Life2yrs (auto shut-off mode)
Power ModeAuto or manual shut-off
Display Digits4 digits to 5,000 psi, 5 digits for10,000 psi and 15,000 psi
Pressure Unit Selectionpsi, mH2O, mmHg, mbar, kPa ranges ≤ 100 psi, psi, bar, kgf/cm2, MPa, atm ranges ≥ 160 psi
Response Time≤ 3 Hz display refresh rate
Proof / Burst Pressure200% / 300% FS
Operating / Storage TemperatureOperating: 14°F to 122°F (-10°C to 50°C), Storage: -4°F to 167°F (-20°C to 75°C)
Accuracy±1% (±0.5% optional for gauges up to 10,000 psi)
Enclosure RatingIP60
