Winters Instruments

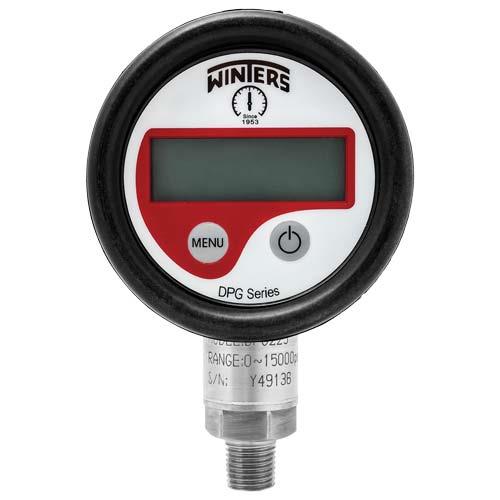

Winters Instruments DPG207 Dpg Digital Pressure Gauge

Back Order

Get it by Thu, May 22 - Tue, May 27

SKU SKU:kpi073-DPG207

$426.77 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

category: Pressure Gauges

manufacture: Winters Instruments

mpn: DPG207

subcategory: Dpg Digital Pressure Gauge

Product Description

Winters Instruments - DPG207

Simple 2 button operation
Reset to zero feature
Backlight turns on when on/off button is pressed
Option for display to remain continuously on
Continuous Peak pressure indication option
316L welded diaphragm seal
Rubber boot is standard
ASME B40.100 compliant
RoHS compliant
±1% accuracy (±0.5% optional for gauges up to 10,000 psi)
5 year warranty
Digital gauges are useful instruments for reading pressure values and provide fast results with clear visibility. If you’re looking for digital gauges, look no further! Our DPG Digital Pressure Gauge is one of the top-performing digital gauges in the market.

Ideal for commercial and industrial applications in both test measurement and general purpose installations

Case Size2.5" (63mm)

Case MaterialABS

Rubber BootSilicone rubber

LCD Display2" x 3/4" (48mm x 16mm)

Connection1/4" NPT 304SS

Sensor316L welded, Piezo

Operation Life1 million cycles

Power Supply2 x AAA battery (1.5V); Sold separately

Battery Life2yrs (auto shut-off mode)

Power ModeAuto or manual shut-off

Display Digits4 digits to 5,000 psi, 5 digits for10,000 psi and 15,000 psi

Pressure Unit Selectionpsi, mH2O, mmHg, mbar, kPa ranges ≤ 100 psi, psi, bar, kgf/cm2, MPa, atm ranges ≥ 160 psi

Response Time≤ 3 Hz display refresh rate

Proof / Burst Pressure200% / 300% FS

Operating / Storage TemperatureOperating: 14°F to 122°F (-10°C to 50°C), Storage: -4°F to 167°F (-20°C to 75°C)

Accuracy±1% (±0.5% optional for gauges up to 10,000 psi)

Enclosure RatingIP60
