category:
Pressure Transmitters
manufacture:
Winters Instruments
mpn:
LE10150
subcategory:
Le1 Oem Pressure Transmitter
Product Description

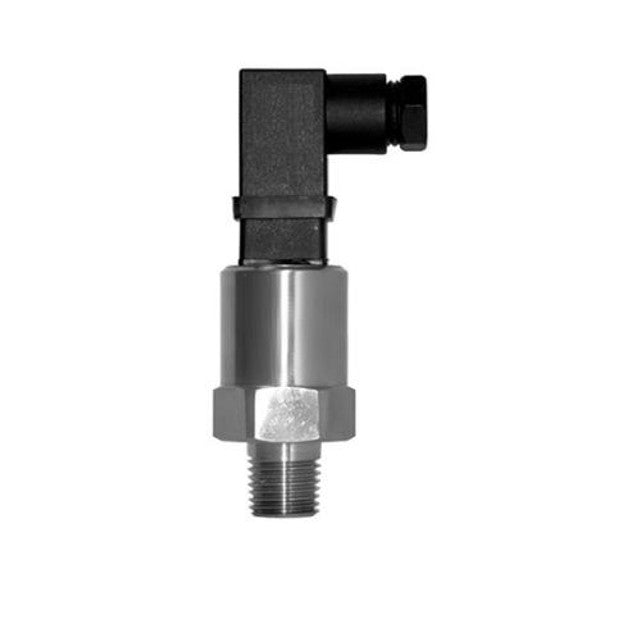

Winters Instruments - LE10150
Features
- Developed for OEM applications.,Compact stainless steel construction with ceramic sensor,Available ranges include Vac up to 8,700 psi (600 bar),Wide range of mechanical and electrical connections,±0.5% accuracy (±1% for pressures ≤45 psi),IP65 and IP67 enclosure ratings,CE approved,5 year warranty
Applications
Suitable for a variety of applications including pump and compressor monitoring, refrigeration and HVAC
Additional Information
Output SignalStandard 2-wire: 4-20 mA / Vs
Accuracy±0.5% FSO (±1% FSO for pressures ≤45 psi (3 x bar))
Response Time 10 ms
Insulation100 MΩ @ 50V
Permissible TemperaturesOperating: -40°F to 212°F (-40°C to 100°C), Compensating: 14°F to 176°F (-10°C to 80°C)
Pressure Port / Housing304 SS
Wetted PartsDiaphragm: Ceramic (up to 2,900 psi), Seals: NBR, Diaphragm: silicone (over 3,000 psi)
Current Consumption2-wire: 25 mA max, 3-wire voltage: 5 mA (short-circuit current 20 mA)
EMCEMI: EN50087-1/-2, EMS: EN50082-2
StabilityVibration: 10 g / 5 Hz to 200 Hz, Shock: 20 g / 11 ms
Operation Life 2 M cycles
ApprovalCE, RoHS
