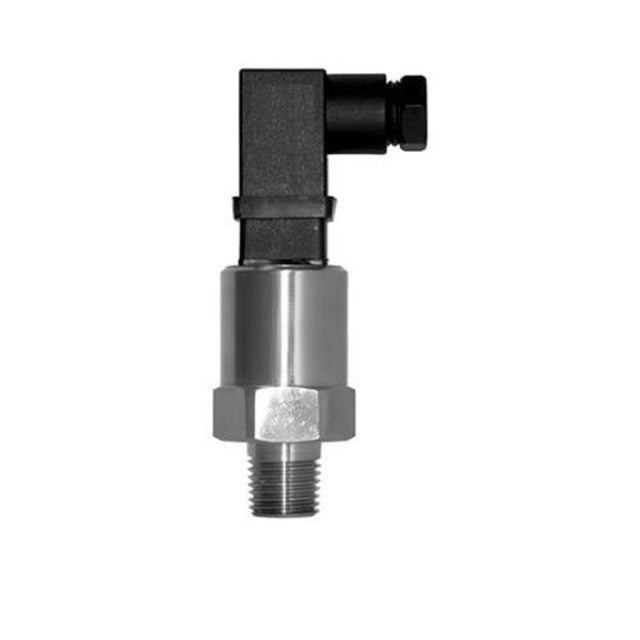

Winters Instruments LE1150 Le1 Oem Pressure Transmitter

Back Order

Get it by Fri, May 23 - Wed, May 28

SKU SKU:kpi073-LE1150

$169.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

category: Pressure Transmitters

manufacture: Winters Instruments

mpn: LE1150

subcategory: Le1 Oem Pressure Transmitter

Product Description

Winters Instruments - LE1150

Developed for OEM applications.,Compact stainless steel construction with ceramic sensor,Available ranges include Vac up to 8,700 psi (600 bar),Wide range of mechanical and electrical connections,±0.5% accuracy (±1% for pressures ≤45 psi),IP65 and IP67 enclosure ratings,CE approved,5 year warranty

Suitable for a variety of applications including pump and compressor monitoring, refrigeration and HVAC

Output SignalStandard 2-wire: 4-20 mA / Vs

Accuracy±0.5% FSO (±1% FSO for pressures ≤45 psi (3 x bar))

Response Time 10 ms

Insulation100 MΩ @ 50V

Permissible TemperaturesOperating: -40°F to 212°F (-40°C to 100°C), Compensating: 14°F to 176°F (-10°C to 80°C)

Pressure Port / Housing304 SS

Wetted PartsDiaphragm: Ceramic (up to 2,900 psi), Seals: NBR, Diaphragm: silicone (over 3,000 psi)

Current Consumption2-wire: 25 mA max, 3-wire voltage: 5 mA (short-circuit current 20 mA)

EMCEMI: EN50087-1/-2, EMS: EN50082-2

StabilityVibration: 10 g / 5 Hz to 200 Hz, Shock: 20 g / 11 ms

Operation Life 2 M cycles

ApprovalCE, RoHS
