category:
Pressure Transmitters
manufacture:
Winters Instruments
mpn:
LM1002
subcategory:
Lm1 Anti Clogging Submersible Pressure Transmitter
Product Description

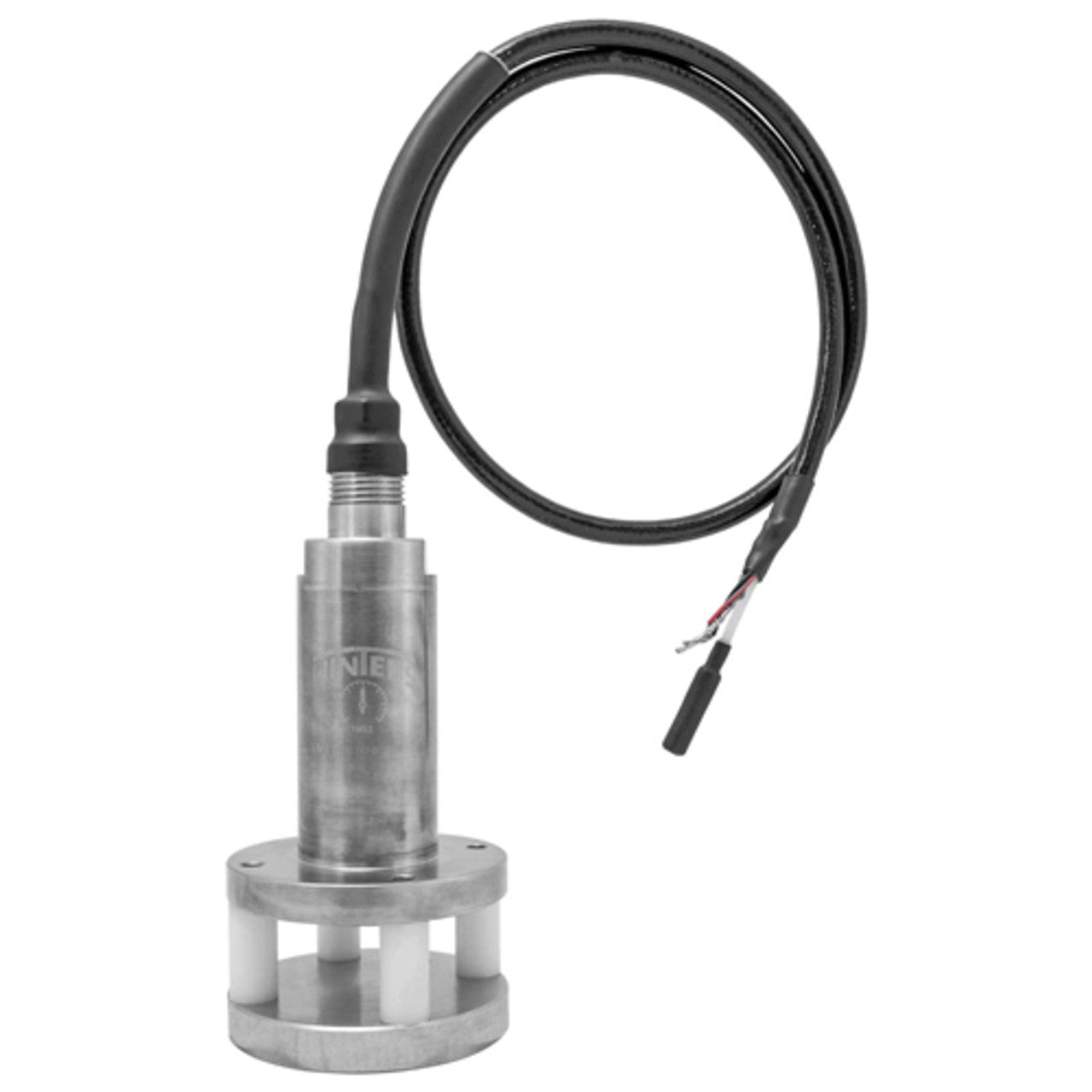

Winters Instruments - LM1002
Features
- Heavy-duty submersible transmitter for level measurement in sludge and slurry installations
- 316L SS housing with anti-clogging sensor and reinforced diaphragm seal
- Standard ranges from 2 thru 50 psi, optional ranges up to 140 psi
- ±0.25% accuracy
- 33’ (10m) of vented cable standard, other lengths also available
- NEMA 6P / IP68 for full immersion
- RoHS compliant
- 5 year warranty
Applications
Manufactured for level measurement in sludge and slurry installations including lifting stations
Additional Information
Output SignalStandard 2-wire: 4-20 mA / Vs
AccuracyStandard: ±0.5% FSO, Optional: ±0.25% FSO
Response Time 5 ms
Permissible TemperatureOperating: 0°F to 200°F (-18°C to 93°C), Storage: -20°F to 250°F (-29°C to 121°C)
Reverse Polarity ProtectionNo damage. No function.
Short Circuit ProtectionUp to 40 Vdc
Electromagnetic CompatibilityInternal filtering
Housing316L SS
Pressure PortFlush mount
Diaphragm316L SS, triple seated
Weight570 g (without cable)
Electrical Connector1/2" NPTM submersible conduit
Lightning ProtectionMOV and dual gas discharge tube
Enclosure RatingNEMA 6P/IP68
